Ready-to-use projects maintained by us
LVGL works with any hardware from 100 MHz MCUs to multi-core Linux-based MPUs. Leading chip vendors already support LVGL in their ecosystem. We also provide ready-to-use projects that offer seamless integration. These projects include up-to-date repositories, responsive support, and extensive documentation.
Do you have HMI Boards?
Join our Project Maintenance Program to enjoy all the benefits for a tailored experience for your board.
Actions Technology

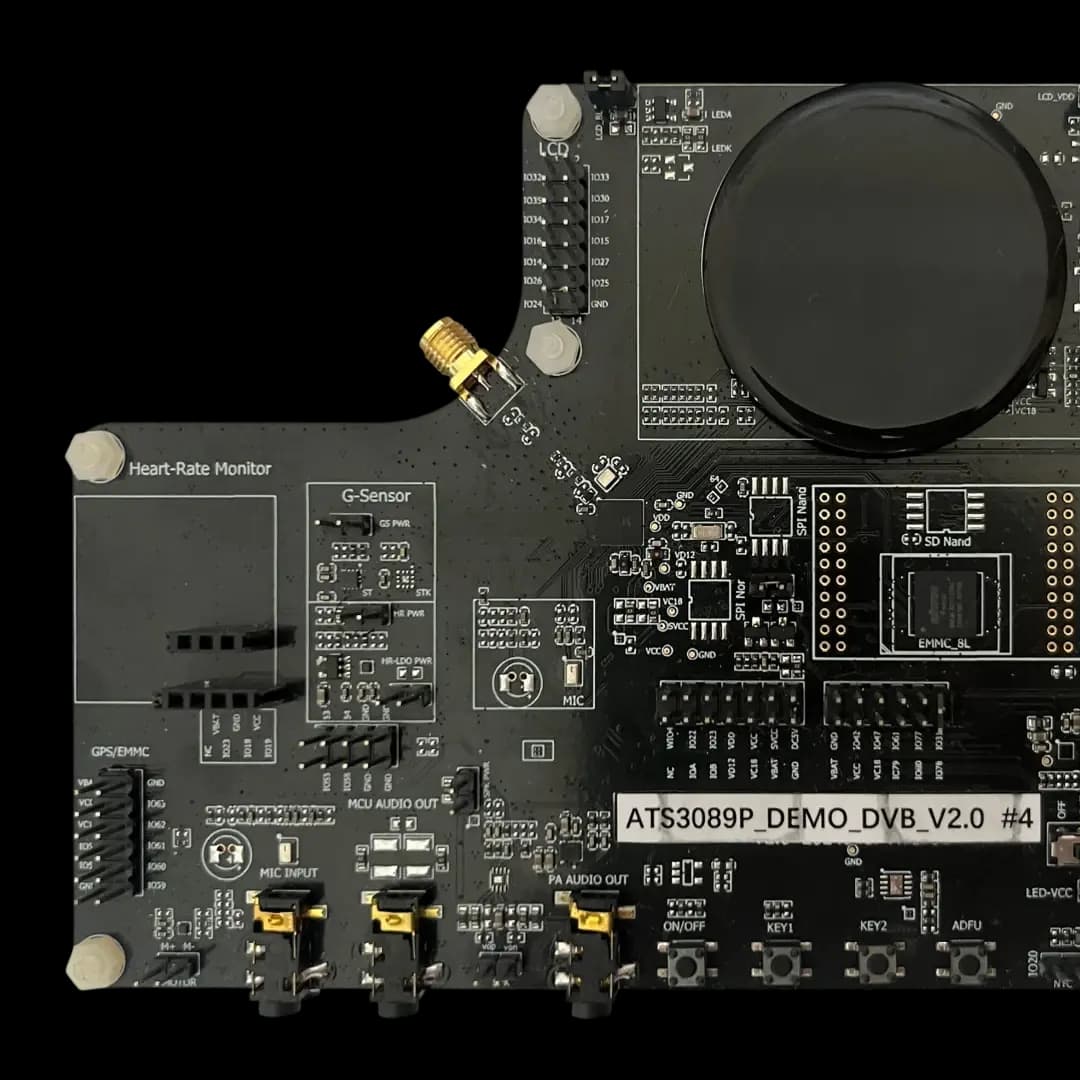

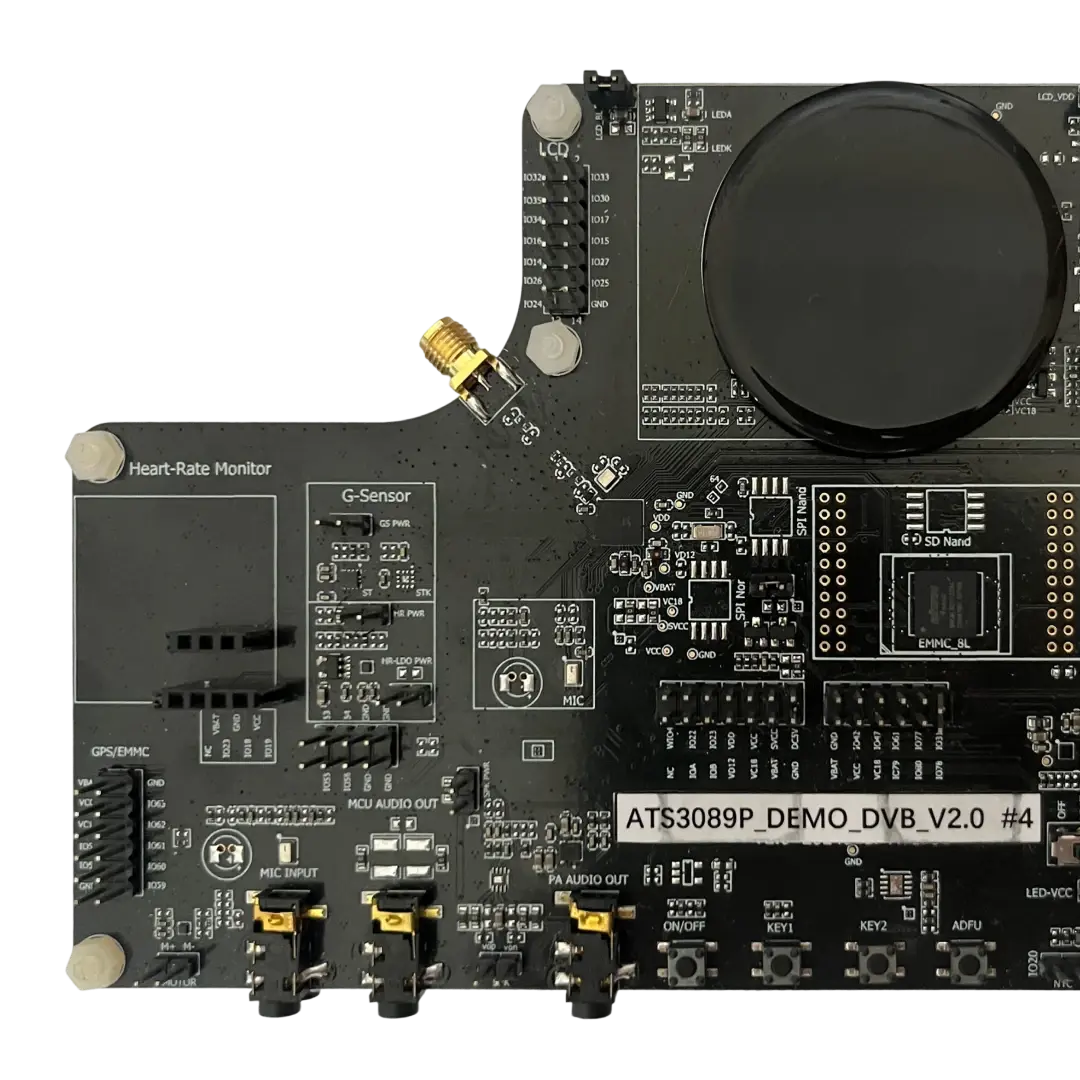

LV Port ATS3089P-EVB
The Actions Technology ATS3089P-EVB is a smartwatch focused development board with round display plus touch, here is a basic directory structure for your custom LVGL app on top of Actions SDK based on Zephyr RTOS.
MCU: ATS3089PRAM: 1.1 MB SRAMFlash: 8 MBGPU: VGLiteResolution: 466x466Display Size: 4.3”Interface: MIPI DSIColor Depth: 24-bitTechnology: LCDDPI: 128 px/inchTouch Pad: Capacitive
Alif Semiconductor

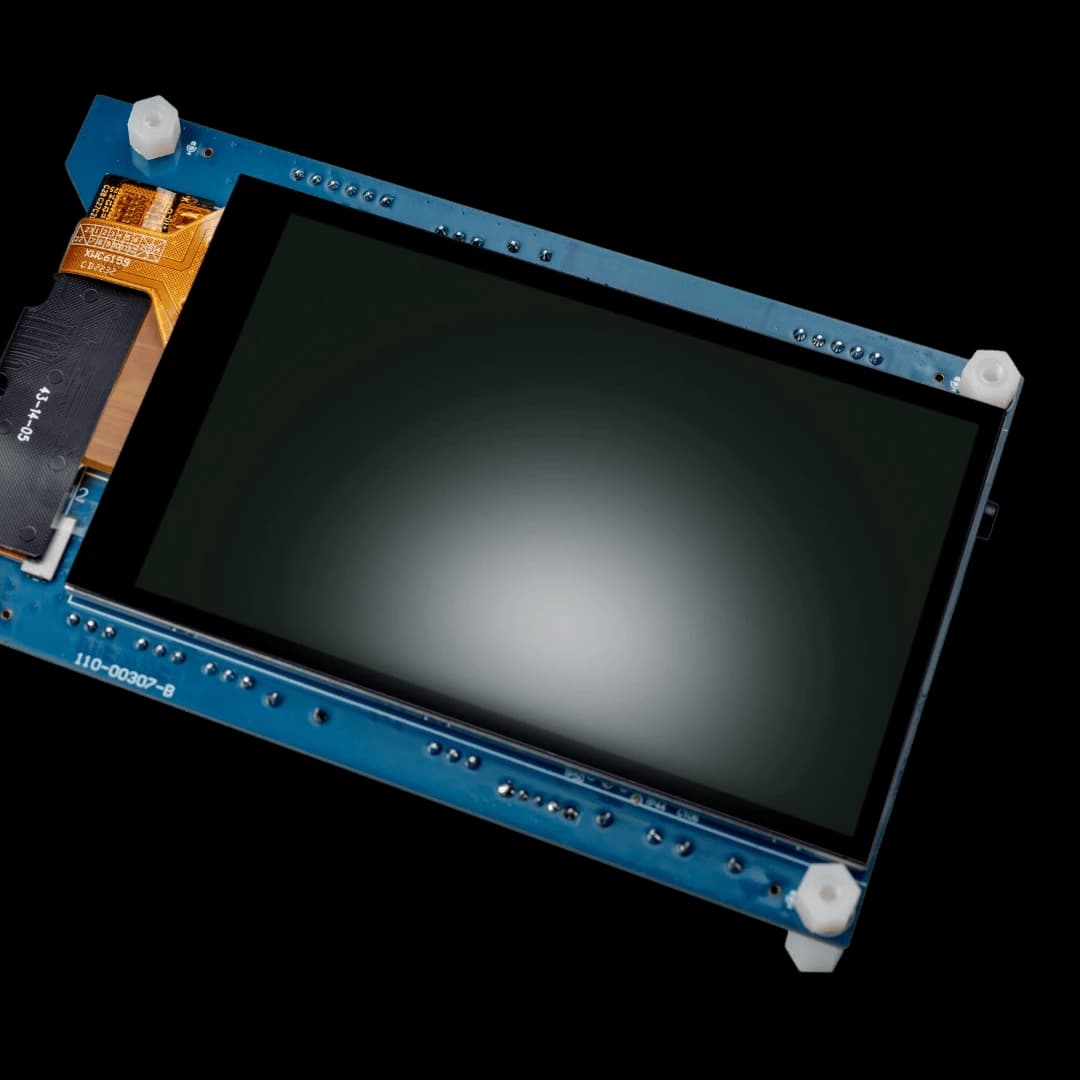

Alif E7 AI/ML AppKit
The E7 AI/ML AppKit is a peripheral-rich board with the most powerful Alif Ensemble SOC. It has two MCU cores. One is highly performant while the other is highly efficient. The desired core can be selected in VS Code. There is builtin AI/ML hardware and another pair of cores that can run an OS like Linux. The board features WiFi, BLE, a camera, multiple microphones, a headphone connector, an IMU, navigation buttons, and USB.
MCU: dual Cortex-M55 - 400 MHz, 160 MHzRAM: 13.5 internal SRAM, 64 MB external PSRAMFlash: 64 MBGPU: DAVE2DResolution: 800x480Display Size: 4”Interface: MIPI LCDColor Depth: 16-bitDPI: 216 px/inchTouch Pad: Capacitive
Espressif

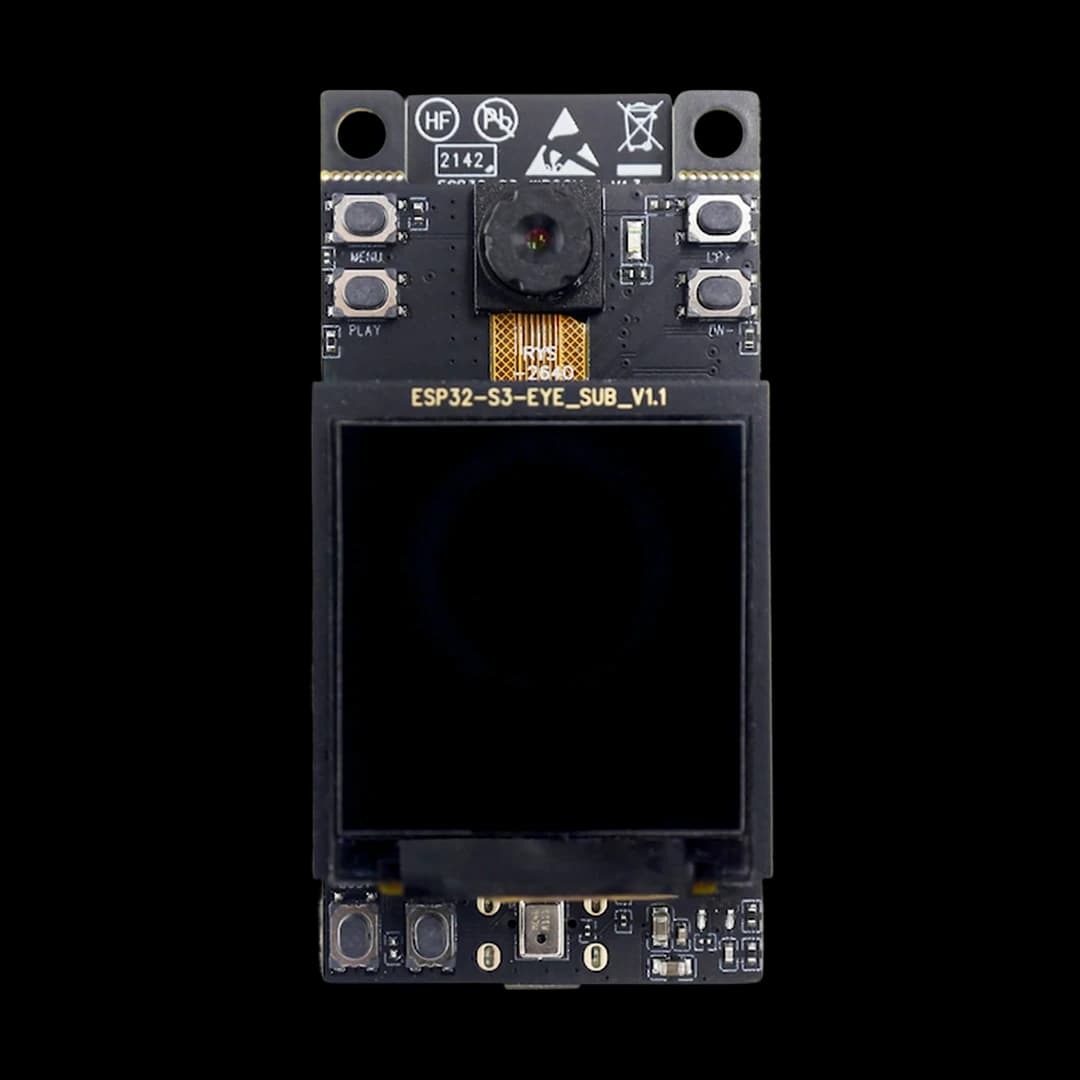

ESP32-S3-EYE
The ESP32-S3-EYE board consists of two parts: the main board (ESP32-S3-EYE-MB) that integrates the ESP32-S3-WROOM-1 module, camera, uSD card slot, digital microphone, USB port, and function buttons; and the sub board (ESP32-S3-EYE-SUB) that contains an LCD display. The main board and sub board are connected through pin headers.
MCU: ESP32-S3RAM: 512 KB internal SRAM, 8 MB external PSRAMFlash: 8/16 MBGPU: NoneResolution: 240x240Display Size: 1.3”Interface: SPIColor Depth: 16-bitTechnology: LCDDPI: 261 px/inchTouch Pad: None


ESP32-S3-Korvo-2
The ESP32-S3-Korvo-2 is a multimedia development board based on the ESP32-S3 chip. It is equipped with a two-microphone array which is suitable for voice recognition and near/far-field voice wake-up applications. The board integrates multiple peripherals such as LCD, camera, and microSD card. It also supports JPEG video stream processing. With all of its outstanding features, the board is an ideal choice for the development of low-cost and low-power network-connected audio and video products.
MCU: ESP32-S3RAM: 512 KB internal SRAM, 8 MB external PSRAMFlash: 8/16 MBGPU: NoneResolution: 320x240Display Size: 2.4”Interface: SPIColor Depth: 16-bitTechnology: LCDDPI: 167 px/inchTouch Pad: Capacitive

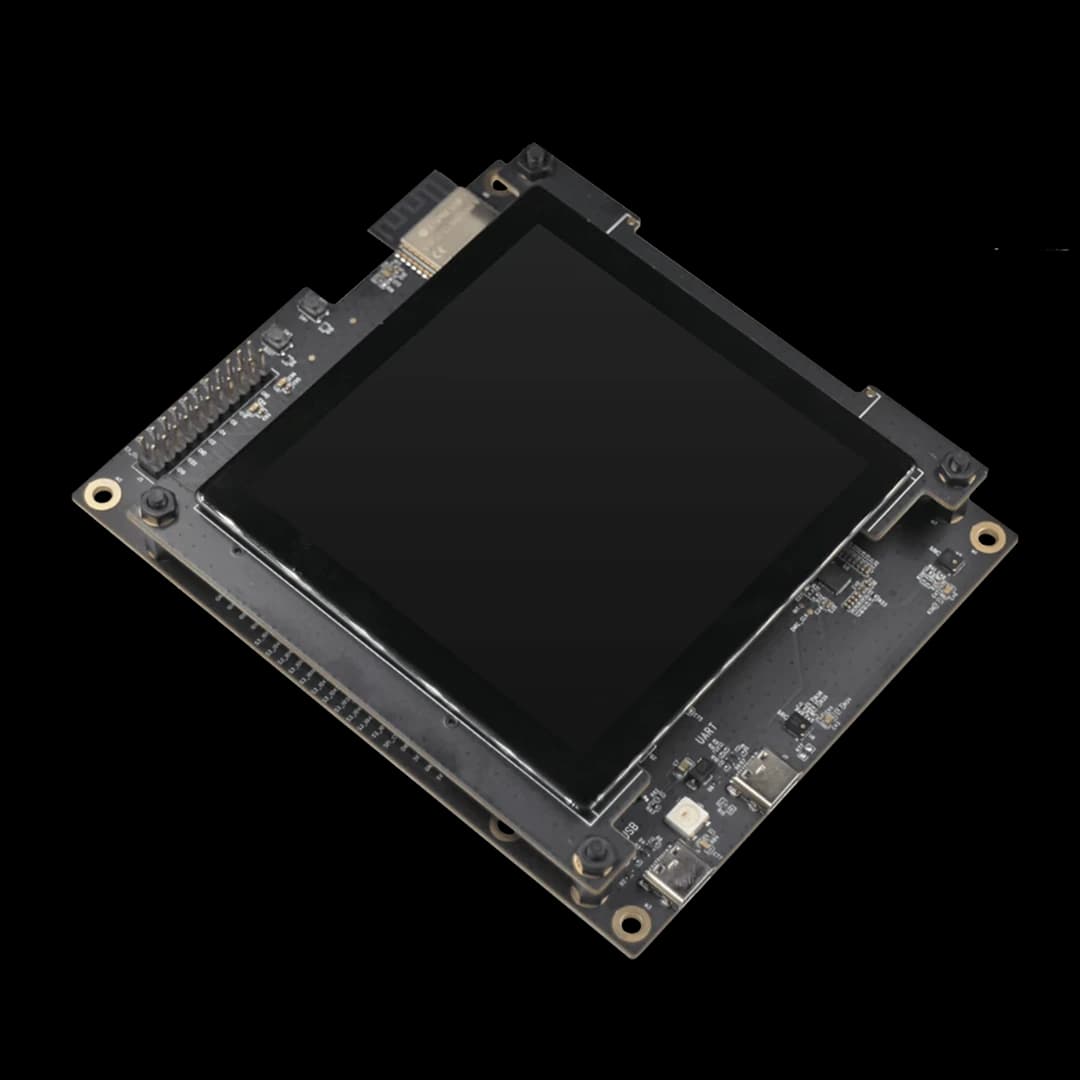

ESP32-S3-LCD-EV-Board
ESP32-S3-LCD-EV-Board is a development board for evaluating and verifying ESP32-S3 screen interactive applications. It has the functions of touch screen interaction and voice interaction.
MCU: ESP32-S3RAM: 512 KB internal SRAM, 8/16 MB external PSRAMFlash: 2/4/8/16 MBGPU: NoneResolution: 800x480 / 480x480Display Size: 4.3” / 3.95”Interface: RGB LCDColor Depth: 24-bitTechnology: IPSDPI: 216 px/inch / 171 px/inchTouch Pad: Capacitive (GT1151/FT5x06)


ESP32-S3-BOX-3
Espressif Systems ESP32-S3-BOX-3 Next-Generation Open-Source AIoT Kit is based on the ESP32-S3 Wi-Fi + BLUETOOTH® 5 (LE) SoC with AI acceleration capabilities. In addition to the ESP32-S3 SoCs 512KB SRAM, the ESP32-S3-BOX-3 comes with 16MB of Quad flash and 16MB of Octal PSRAM. ESP32-S3-BOX-3 features a 2.4-inch (320 x 240) SPI touchscreen, two digital microphones, a speaker, a Type-C port, and a high-density PCIe connector for hardware extensibility. A speech-recognition framework provides users with an offline AI voice assistant with far-field voice interaction, continuous recognition, wake-up interruption, and the ability to recognize over 200 customizable command words. The device can also be transformed into an online AI chatbot using advanced AIGC development platforms like OpenAI.
MCU: ESP32-S3RAM: 512 KB internal SRAM, 16 MB external PSRAMFlash: 16 MBGPU: NoneResolution: 320x240Display Size: 2.4”Interface: SPI 40 MHzColor Depth: 16-bitTechnology: RGB LCD (ILI9341)DPI: 166 px/inchTouch Pad: Capacitive (GT911)

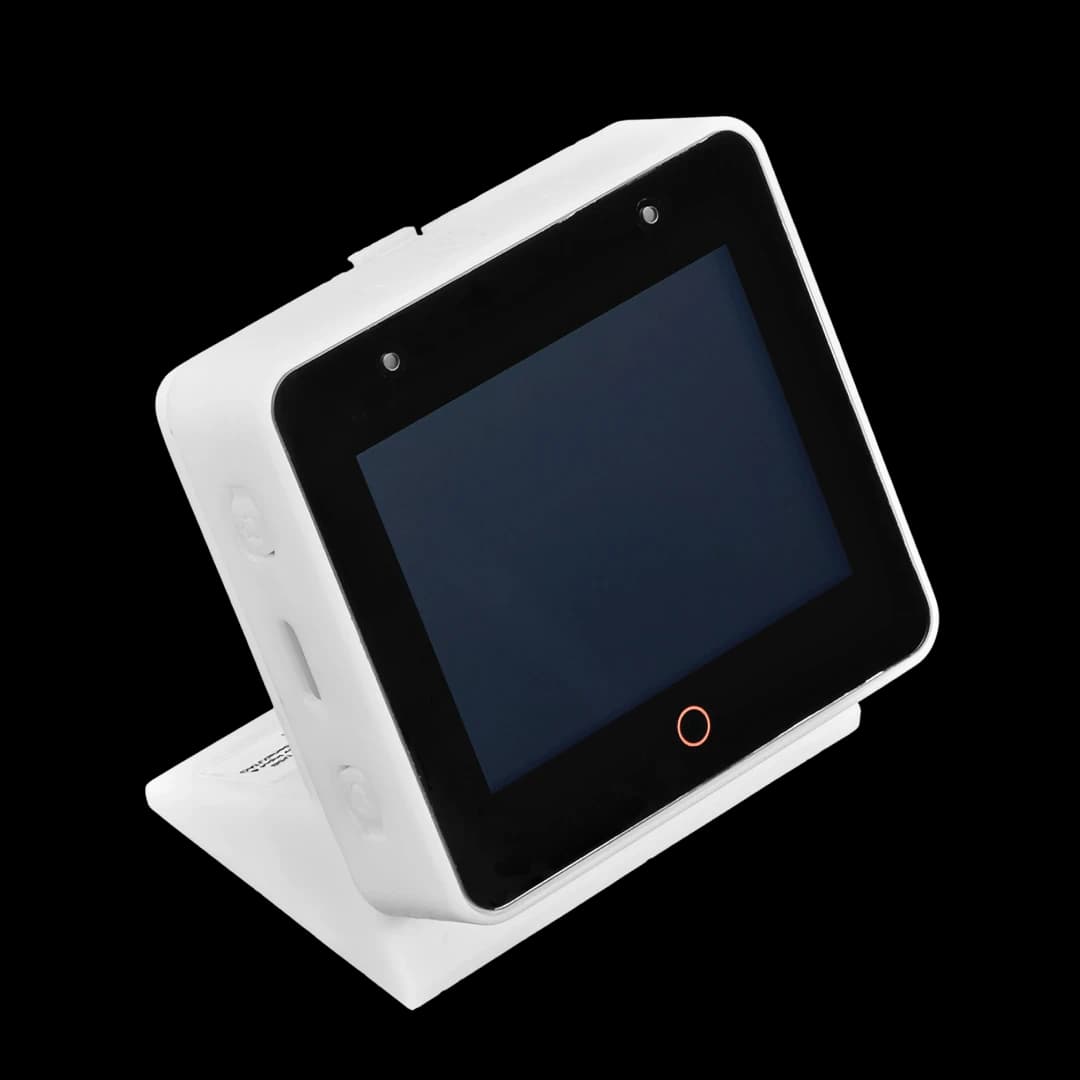

ESP32-BOX
ESP32-BOX is an AI voice development kit that is based on Espressif’s ESP32-S3 with AI capabilities. In addition to the touch screen, it features a dual microphone, a speaker, and two Pmod™-compatible headers which allow for the extensibility of the hardware. It uses a Type-C USB connector that provides 5 V of power input, while also supporting serial and JTAG debugging, as well as a programming interface; all through the same connector.
MCU: ESP32-S3RAM: 512 KB internal SRAM, 8 MB external PSRAMFlash: 8/16 MBGPU: NoneResolution: 320x240Display Size: 2.4”Interface: SPIColor Depth: 16-bitTechnology: LCDDPI: 167 px/inchTouch Pad: Capacitive

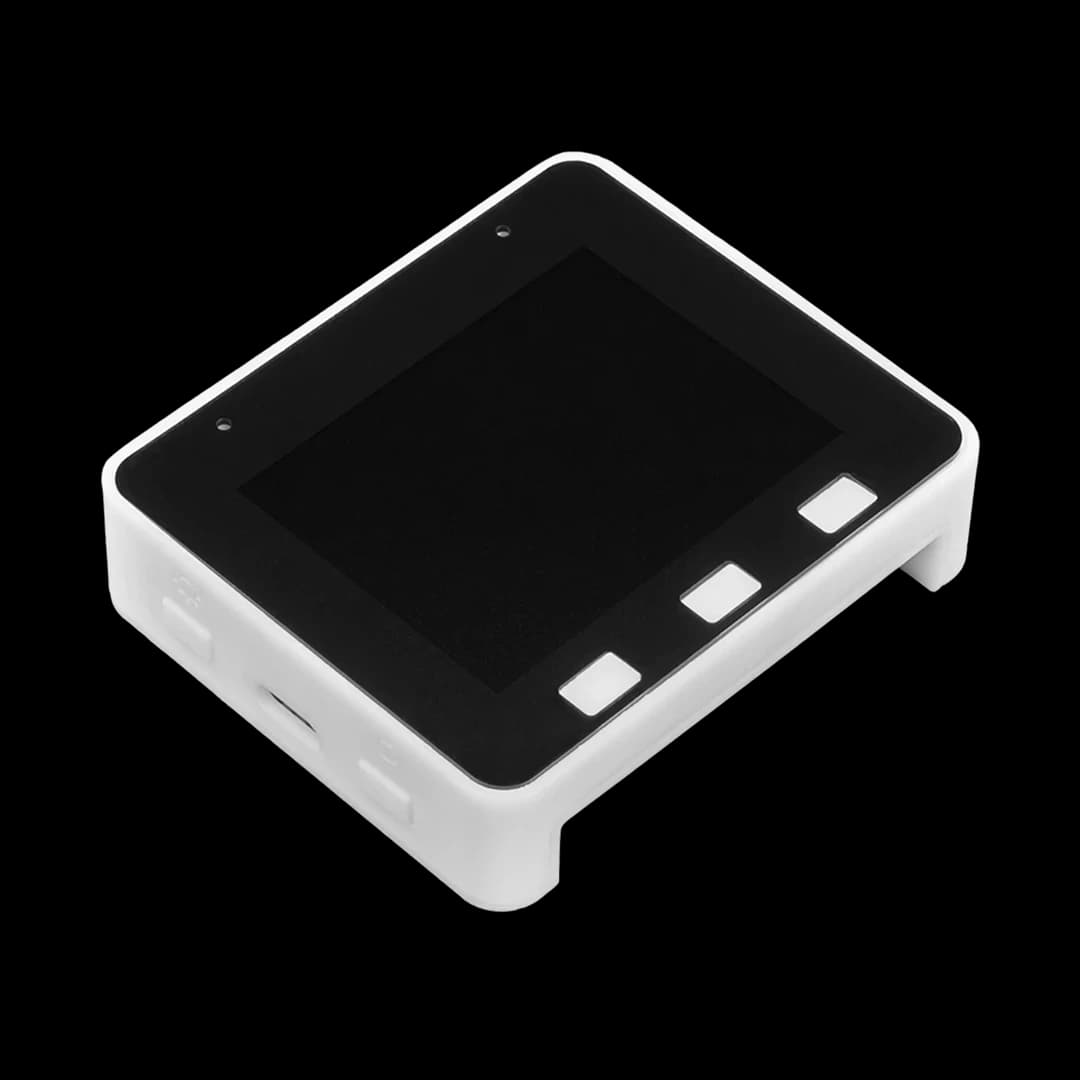

ESP32-BOX-Lite
ESP32-BOX-Lite is an AI voice development kit that is based on Espressif’s ESP32-S3 with AI capabilities. In addition to the touch screen, it features a dual microphone, a speaker, and two Pmod™-compatible headers which allow for the extensibility of the hardware. It uses a Type-C USB connector that provides 5 V of power input, while also supporting serial and JTAG debugging, as well as a programming interface; all through the same connector.
MCU: ESP32-S3RAM: 512 KB internal SRAM, 8 MB external PSRAMFlash: 8/16 MBGPU: NoneResolution: 320x240Display Size: 2.4”Interface: SPIColor Depth: 16-bitTechnology: LCDDPI: 167 px/inchTouch Pad: Capacitive

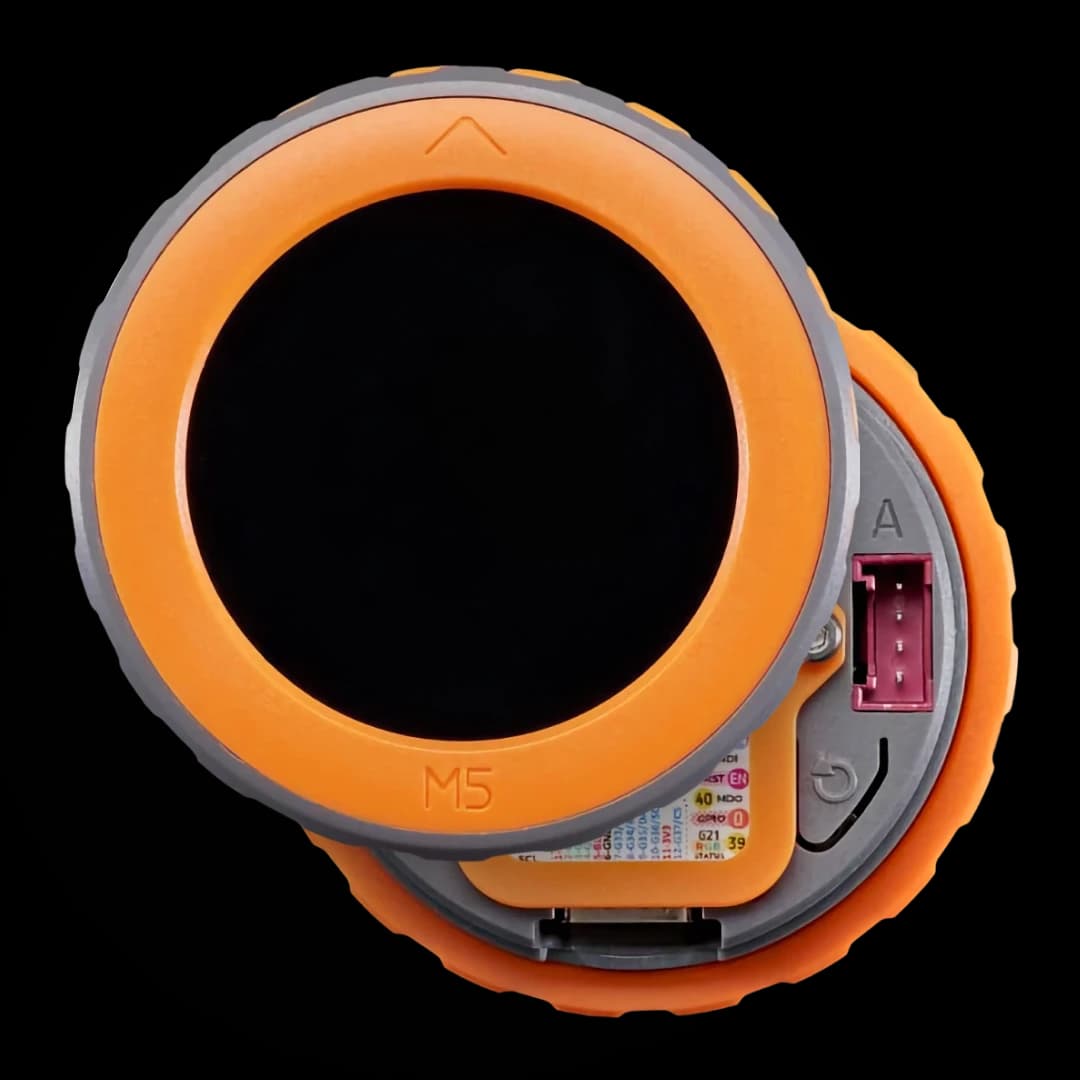

M5SDial
As a versatile embedded development board, M5Dial integrates the necessary features and sensors for various smart home control applications. It features a 1.28-inch round TFT touchscreen, a rotary encoder, an RFID detection module, an RTC circuit, a buzzer, and under-screen buttons, enabling users to easily implement a wide range of creative projects.
MCU: ESP32-S3RAM: 512 KB internal SRAM, 8 MB external PSRAMFlash: 8/16 MBGPU: NoneResolution: 240x240Display Size: 1.28”Interface: SPIColor Depth: 16-bitTechnology: TFTDPI: 265 px/inchTouch Pad: Capacitive

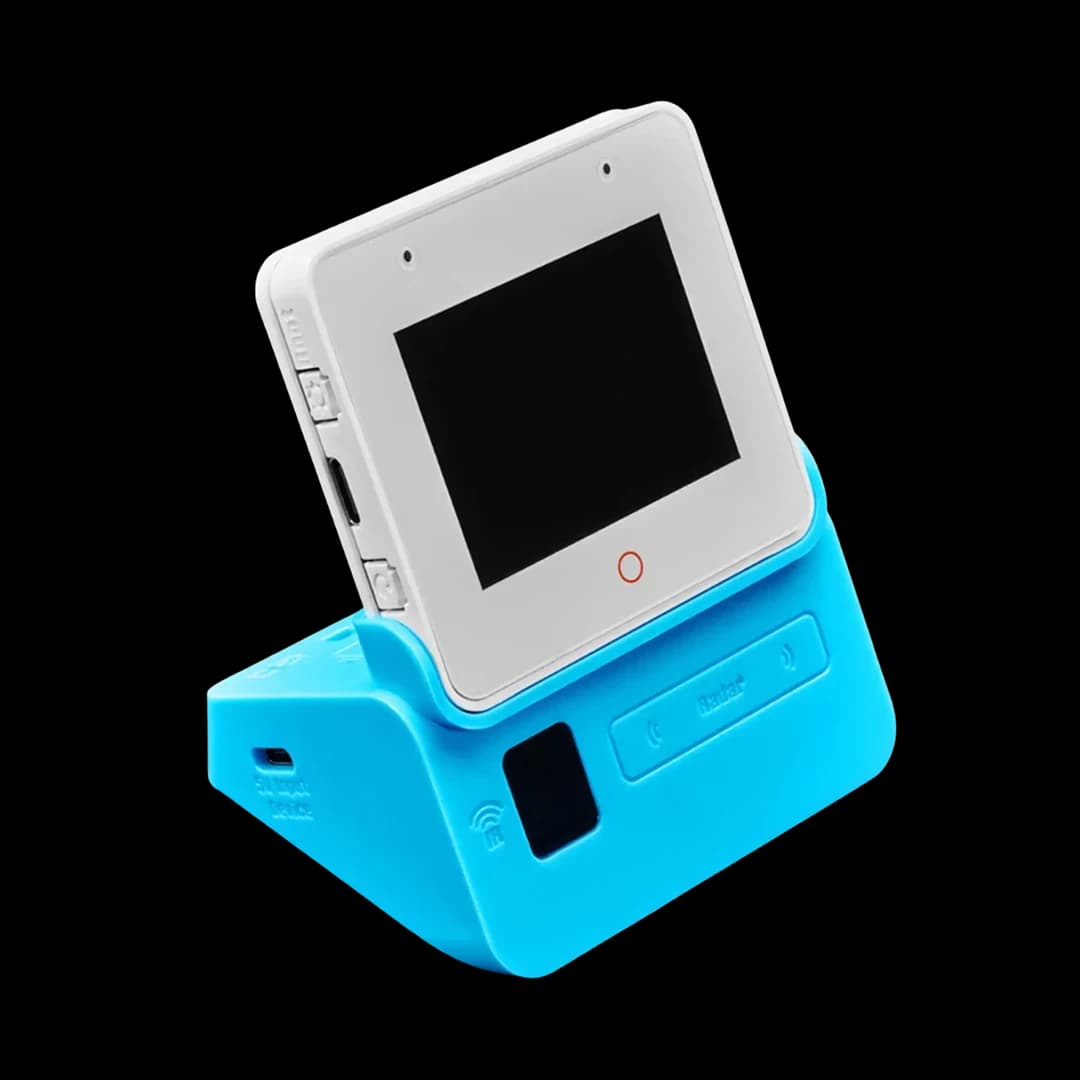

M5Stack CoreS3
CoreS3 is the third generation of the M5Stack Core series. Powered by the ESP32-S3 solution, this kit features a dual-core Xtensa LX7 processor running at 240MHz. CoreS3 comes equipped with built-in Wi-Fi functionality, enabling seamless connectivity. It boasts 16MB of onboard flash memory and 8MB of PSRAM, providing ample space for program storage.
MCU: ESP32-S3RAM: 512 KB internal SRAM, 8/16 MB external PSRAMFlash: 2/4/8/16 MBGPU: NoneResolution: 320x240Display Size: 2.0”Interface: SPIColor Depth: 24-bitTechnology: LCDDPI: 200 px/inchTouch Pad: Capacitive (FT5x06)


NuttX ESP32-S3-LCD-EV-Board
NuttX is a highly configurable RTOS that implements many POSIX standard interfaces for a familliar development experience and well defined boundaries between components. The Espressif ESP32-S3-LCD-EV-Board is a devboard with a touchscreen based on the ESP32-S3. This option creates a NuttX project for the Espressif ESP32-S3-LCD-EV-Board based on the NuttX LVGL defconfig for esp32s3-lcd-ev and a basic directory structure for your custom LVGL app.
MCU: ESP32-S3RAM: 512 KB internal SRAM, 8/16 MB external PSRAMFlash: 2/4/8/16 MBGPU: NoneResolution: 800x480 / 480x480Display Size: 4.3” / 3.95”Interface: RGB LCDColor Depth: 24-bitTechnology: IPSDPI: 216 px/inch / 171 px/inchTouch Pad: Capacitive (GT1151/FT5x06)


NuttX ESP32-S3-BOX-3
NuttX is a highly configurable RTOS that implements many POSIX standard interfaces for a familliar development experience and well defined boundaries between components. The Espressif ESP32-S3-BOX-3 is an AIoT kit based on the ESP32-S3. This option creates a NuttX project for the Espressif ESP32-S3-BOX-3 based on the NuttX LVGL defconfig for esp32s3-box and a basic directory structure for your custom LVGL app.
MCU: ESP32-S3RAM: 512 KB internal SRAM, 16 MB external PSRAMFlash: 16 MBGPU: NoneResolution: 320x240Display Size: 2.4”Interface: SPI 40 MHzColor Depth: 16-bitTechnology: LCD (ILI9341)DPI: 167 px/inchTouch Pad: Capacitive (GT911)

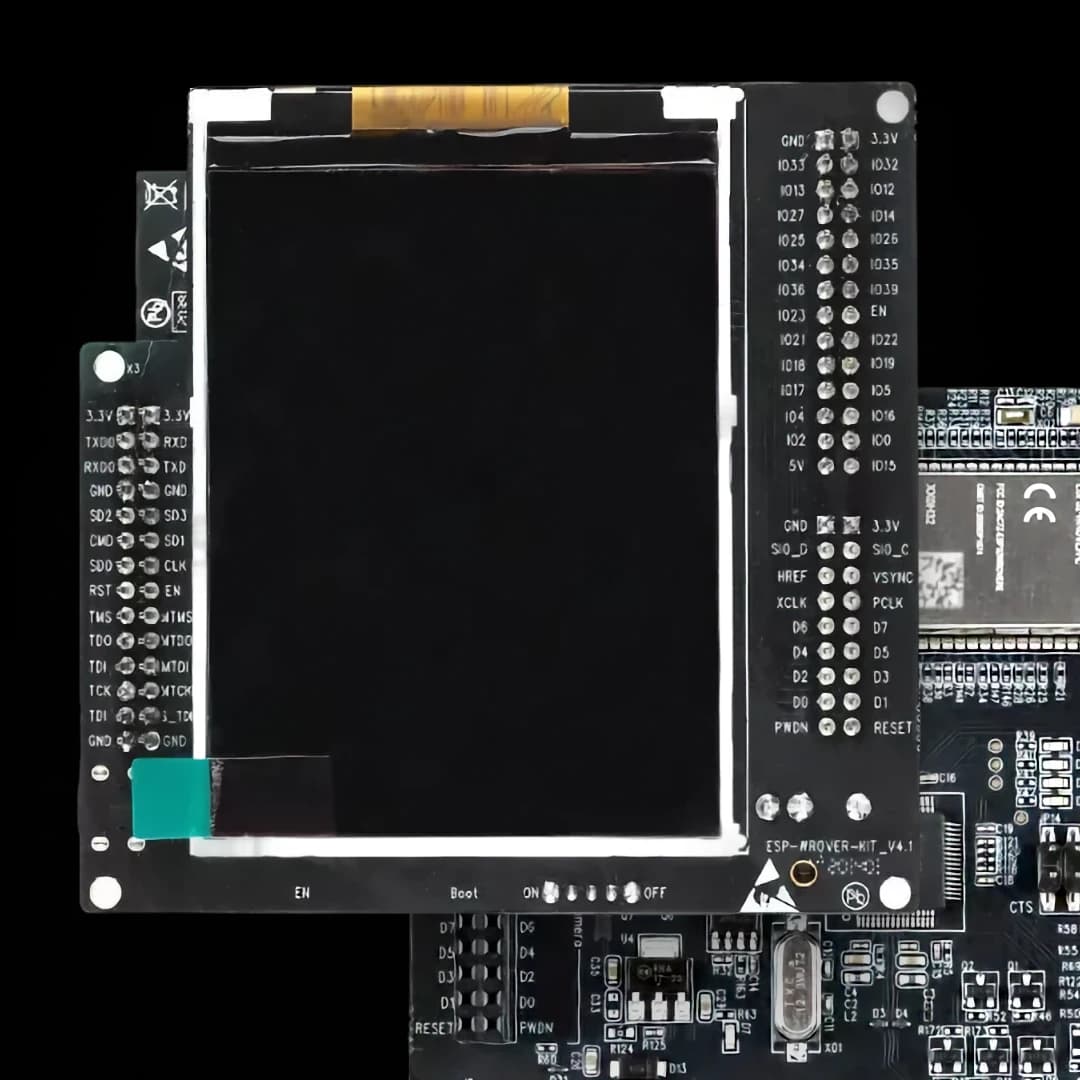

NuttX ESP-WROVER-KIT
NuttX is a highly configurable RTOS that implements many POSIX standard interfaces for a familliar development experience and well defined boundaries between components. The Espressif ESP-WROVER-KIT is a devboard based on the ESP32. This option creates a NuttX project for the Espressif ESP-WROVER-KIT based on the NuttX LVGL defconfig for esp32-wrover-kit and a basic directory structure for your custom LVGL app.
MCU: ESP32RAM: 520 KB internal SRAM, 4 MB external PSRAMFlash: 16 MBGPU: NoneResolution: 320x240Display Size: 3.2”Interface: SPIColor Depth: 16-bitTechnology: LCDDPI: 125 px/inchTouch Pad: None

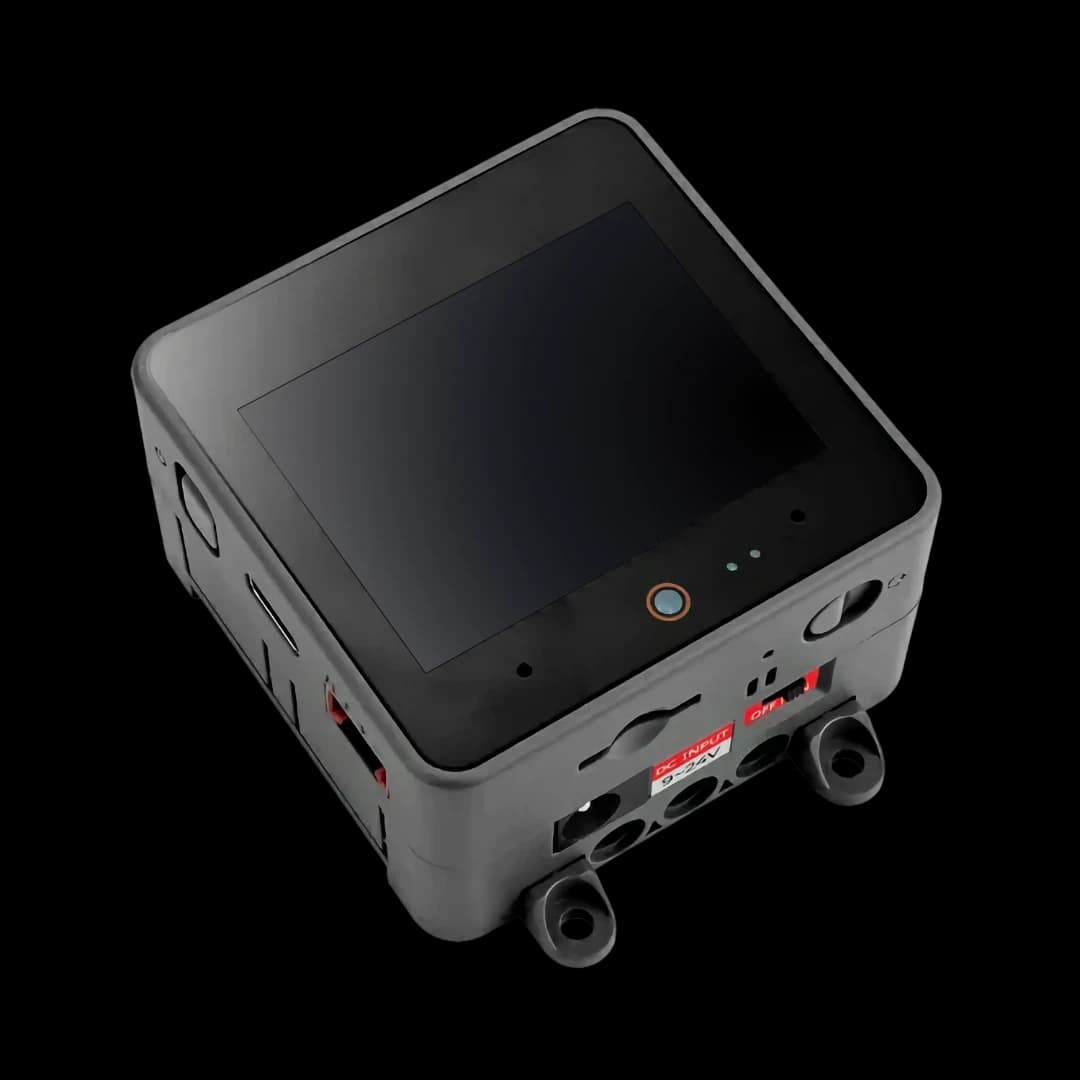

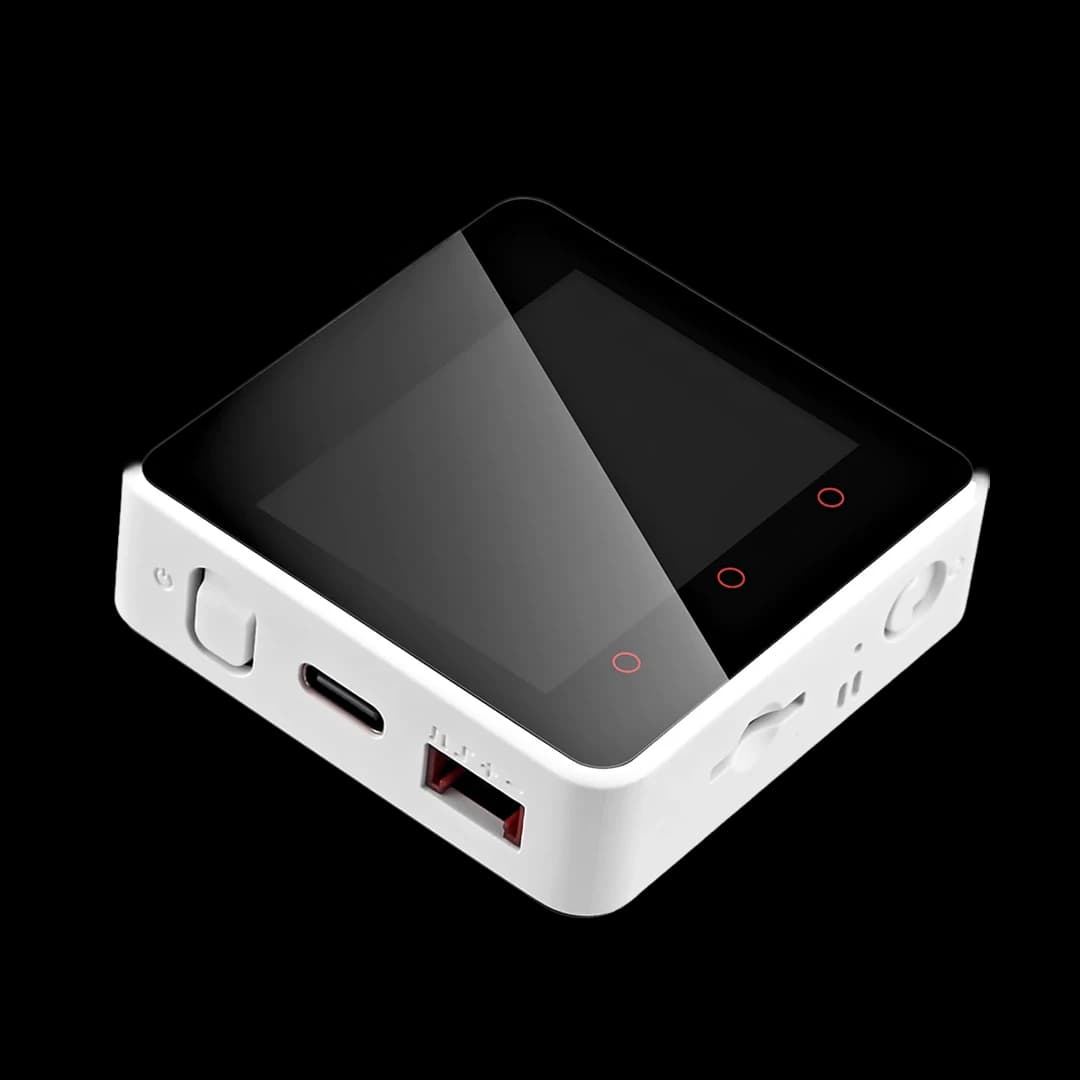

Zephyr M5Stack Core 2
The Zephyr RTOS is a open source, highly configurable, scalable, secure, modular and vendor neutral real time operating system. The NXP MIMXRT1170-EVK is a devboard with an optional touchscreen. This option creates a Zephyr project for the MIMXRT1170-EVK based on the Zephyr LVGL for mimxrt1170-evk and a basic directory structure for your custom LVGL app.
MCU: ESP32RAM: 8 MB SRAMFlash: 16 MBGPU: NoneResolution: 320x240Display Size: 2.1”Interface: Parallell 8080 16bitColor Depth: 14-bitTechnology: LCDDPI: 128 px/inchTouch Pad: Capacitive

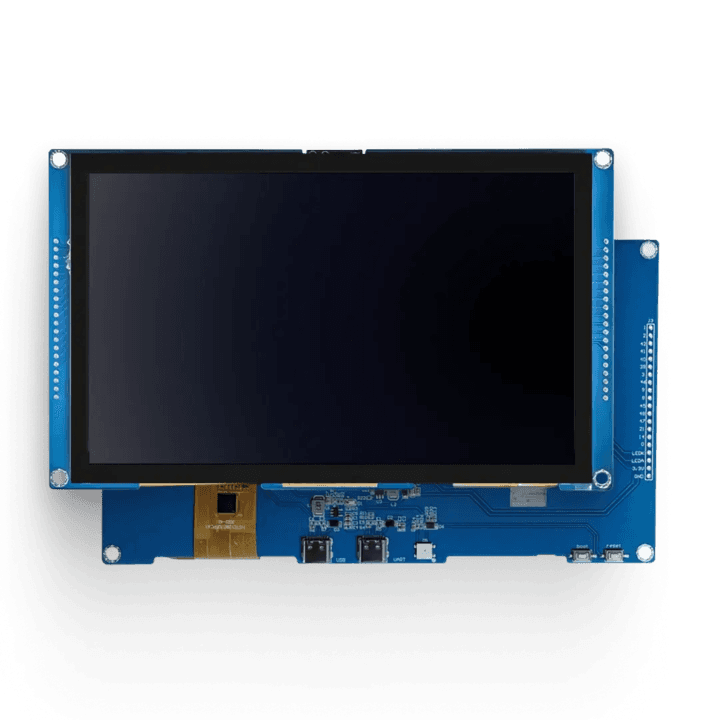

Viewe ESP32 S3 Smart Display
The Viewe ESP32 S3 Smart Display, designed and developed by Viewe Display, features an 800×480 resolution with 300 cd/m² brightness and multi-point capacitive touch. Powered by an ESP32-S3 (240MHz) with 8MB RAM and 16MB Flash, it supports Wi-Fi, BLE 5, and BLE Mesh. Designed for Arduino, ESP-IDF, and LVGL platforms, it offers UART and USB interfaces for versatile IoT and AIoT applications.
MCU: ESP32-S3 (240MHz)RAM: 512 KB (internal), 8MB (external)Flash: 16 MBGPU: NoneResolution: 800x480Display Size: 7.0”Interface: RGB LCDColor Depth: 24-bitTechnology: TNDPI: 133 px/inchTouch Pad: Capacitive (GT911)
NXP

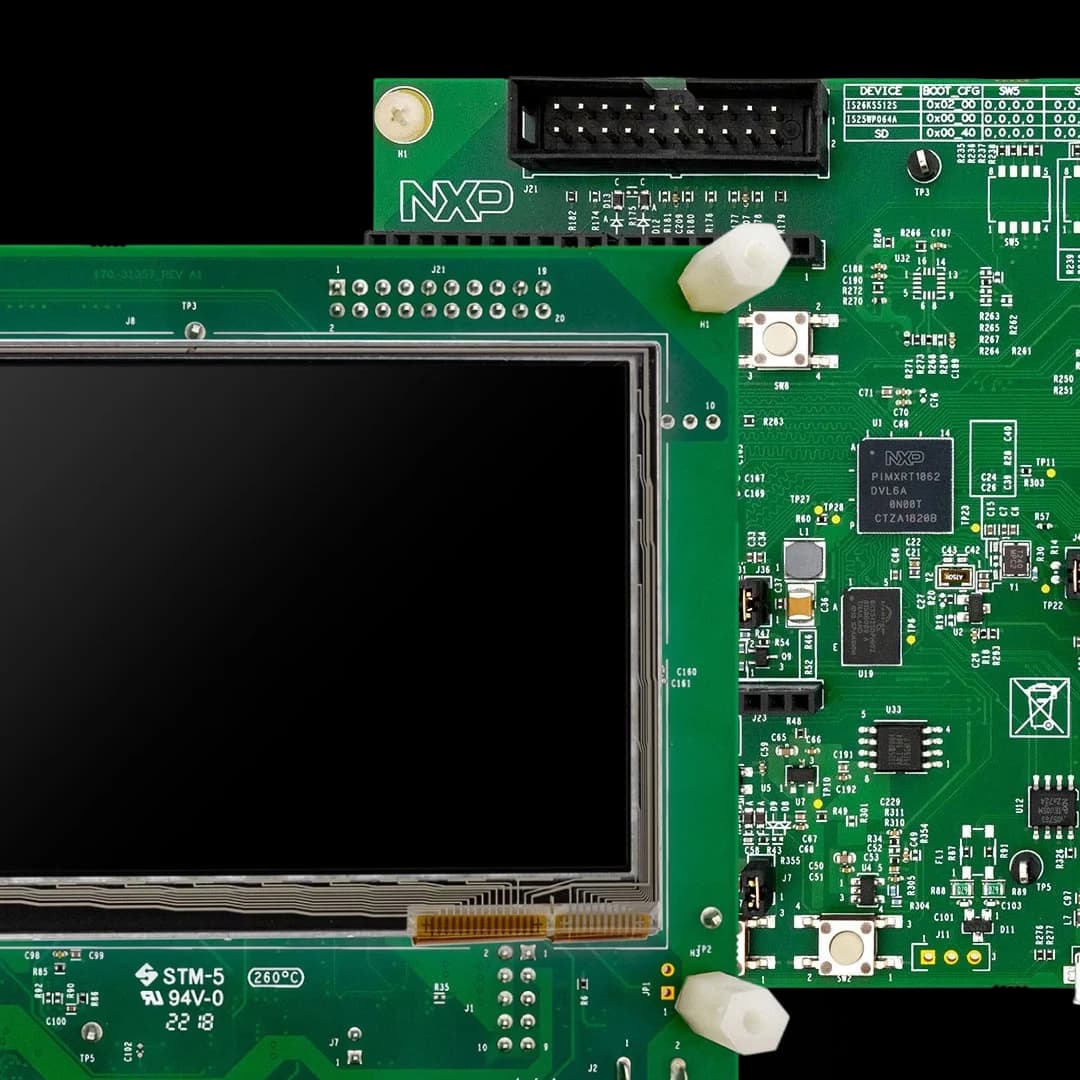

NuttX MIMXRT1060-EVK
NuttX is a highly configurable RTOS that implements many POSIX standard interfaces for a familliar development experience and well defined boundaries between components. The NXP MIMXRT1060-EVK is a devboard with an optional touchscreen. This option creates a NuttX project for the MIMXRT1060-EVK based on the NuttX LVGL defconfig for mimxrt1060-evk and a basic directory structure for your custom LVGL app.
MCU: i.MX RT1060RAM: 256 MB SRAMFlash: 512+64 MBGPU: NoneResolution: 480x272Display Size: 4.3”Interface: RGB parallelColor Depth: 24-bitTechnology: LCDDPI: 128 px/inchTouch Pad: Capacitive

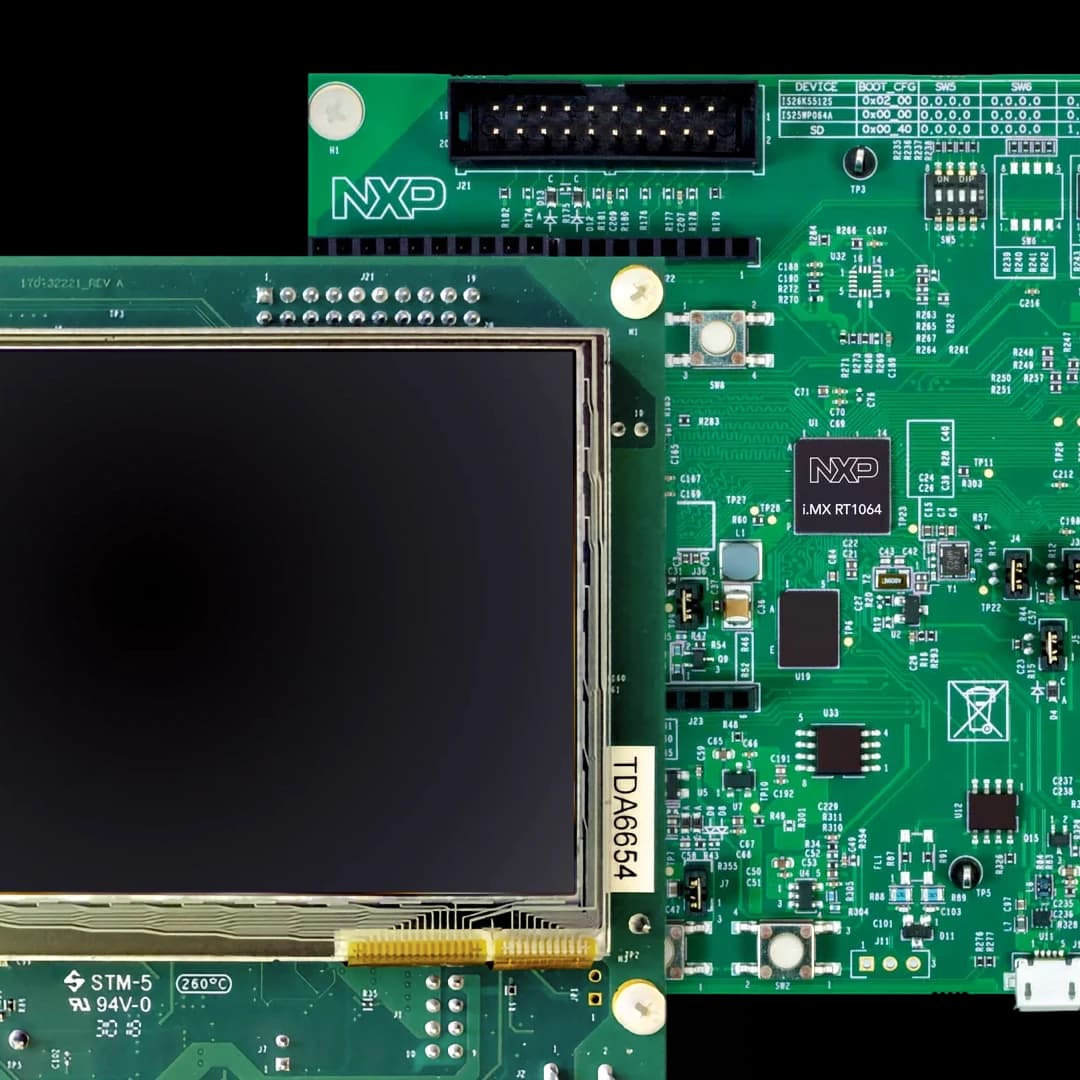

NuttX MIMXRT1064-EVK
NuttX is a highly configurable RTOS that implements many POSIX standard interfaces for a familliar development experience and well defined boundaries between components. The NXP MIMXRT1064-EVK is a devboard with an optional touchscreen. This option creates a NuttX project for the MIMXRT1064-EVK based on the NuttX LVGL defconfig for mimxrt1064-evk and a basic directory structure for your custom LVGL app.
MCU: i.MX RT1064RAM: 256 MB SRAMFlash: 512+64 MBGPU: NoneResolution: 480x272Display Size: 4.3”Interface: RGB parallelColor Depth: 24-bitTechnology: LCDDPI: 128 px/inchTouch Pad: Capacitive

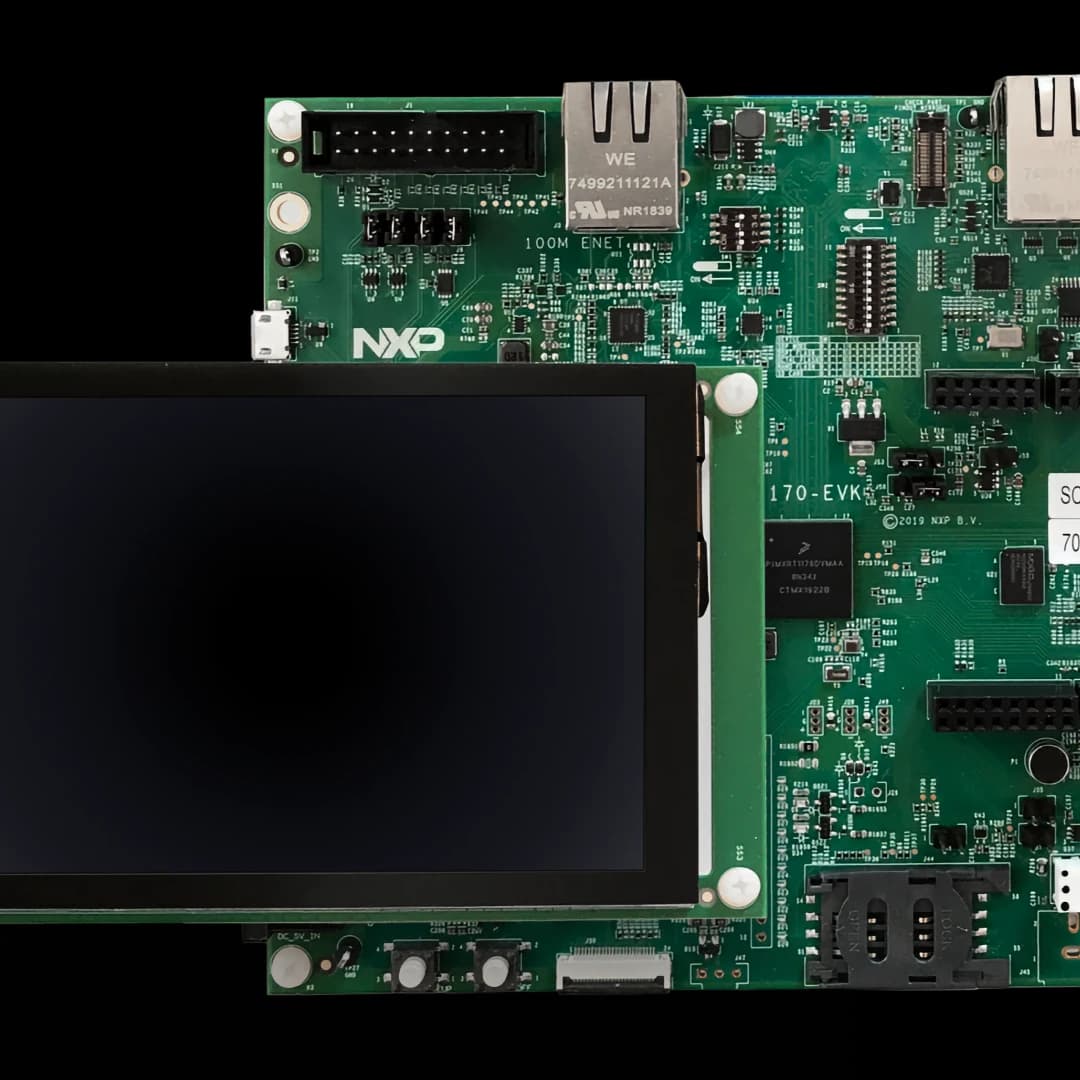

Zephyr MIMXRT1170-EVKB
The Zephyr RTOS is a open source, highly configurable, scalable, secure, modular and vendor neutral real time operating system. The NXP MIMXRT1170-EVK is a devboard with an optional touchscreen. This option creates a Zephyr project for the MIMXRT1170-EVK based on the Zephyr LVGL for mimxrt1170-evk and a basic directory structure for your custom LVGL app.
MCU: i.MX RT1176xxARAM: 256 MB SRAMFlash: 16 MBGPU: PXPResolution: 800x480Display Size: 4.3”Interface: MIPI DSIColor Depth: 24-bitTechnology: LCDDPI: 128 px/inchTouch Pad: Capacitive

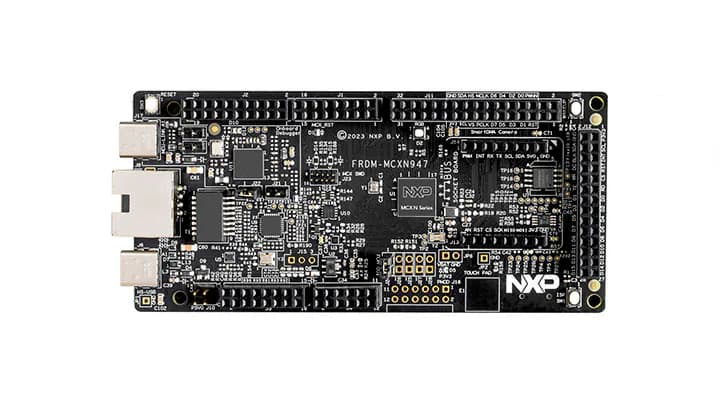

LV Port FRDM-MCXN947
The NXP FRDM-MCXN947 is a devboard with an optional LCD add-on board. This option creates a MCU Expresso with LVGL for FRDM-MCXN947 and a basic directory structure for your custom LVGL app.
MCU: MCXN-947RAM: 512 KB SRAMFlash: 2 MBGPU: NoneResolution: 480x320Display Size: 3.5”Interface: SPIColor Depth: 16-bitTechnology: LCDDPI: 128 px/inchTouch Pad: Capacitive


Toradex Verdin imx8mm
The Verdin imx8m mini is a cost-effective Computer on Module (CoM) based on the NXP imx8m mini processor, offering up to four Cortex-A53 cores. It features integrated Wi-Fi 5 and Bluetooth 5.3, Torizon’s OTA updates, device monitoring, and remote access. Designed for power-constrained applications, the Verdin imx8m mini includes advanced power management and hardware-based security for secure boot and cryptographic acceleration.
MPU: 4 64-bit Arm® Cortex®-A53 @1.8GHzMCU: Arm® Cortex®-M4 MCU @400MHzRAM: 2 GB LPDDR4 32-Bit data bus with inline ECC (1500 MT/s)Flash: 16GB eMMC FlashGPU: 2D: Vivante GC320, 3D: Vivante GCNanoUltra


i.MX 93 Evaluation Kit
The i.MX 93 applications processors are the first in the i.MX portfolio to integrate the scalable Arm Cortex-A55 core, bringing performance and energy efficiency to Linux®-based edge applications and the Arm Ethos™-U65 microNPU, enabling developers to create more capable, cost-effective and energy-efficient ML applications. The i.MX 93 EVK for 11x11mm sample provides a platform for comprehensive evaluation of the i.MX 93 applications processors and also includes the ability to measure power consumption on the power rails.
MPU: Dual Cortex-A55 @1.7GHzMCU: Cortex-M33 @250MHzRAM: 2 GB LPDDR4X / LPDDR4 16-Bit data bus with inline ECC (3.7 GT/s)Flash: 16 GB eMMC5.1 Micro SD CardGPU: PowerVR
Renesas

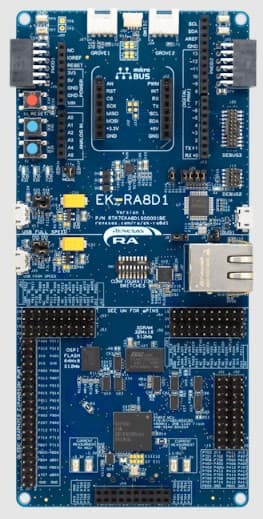

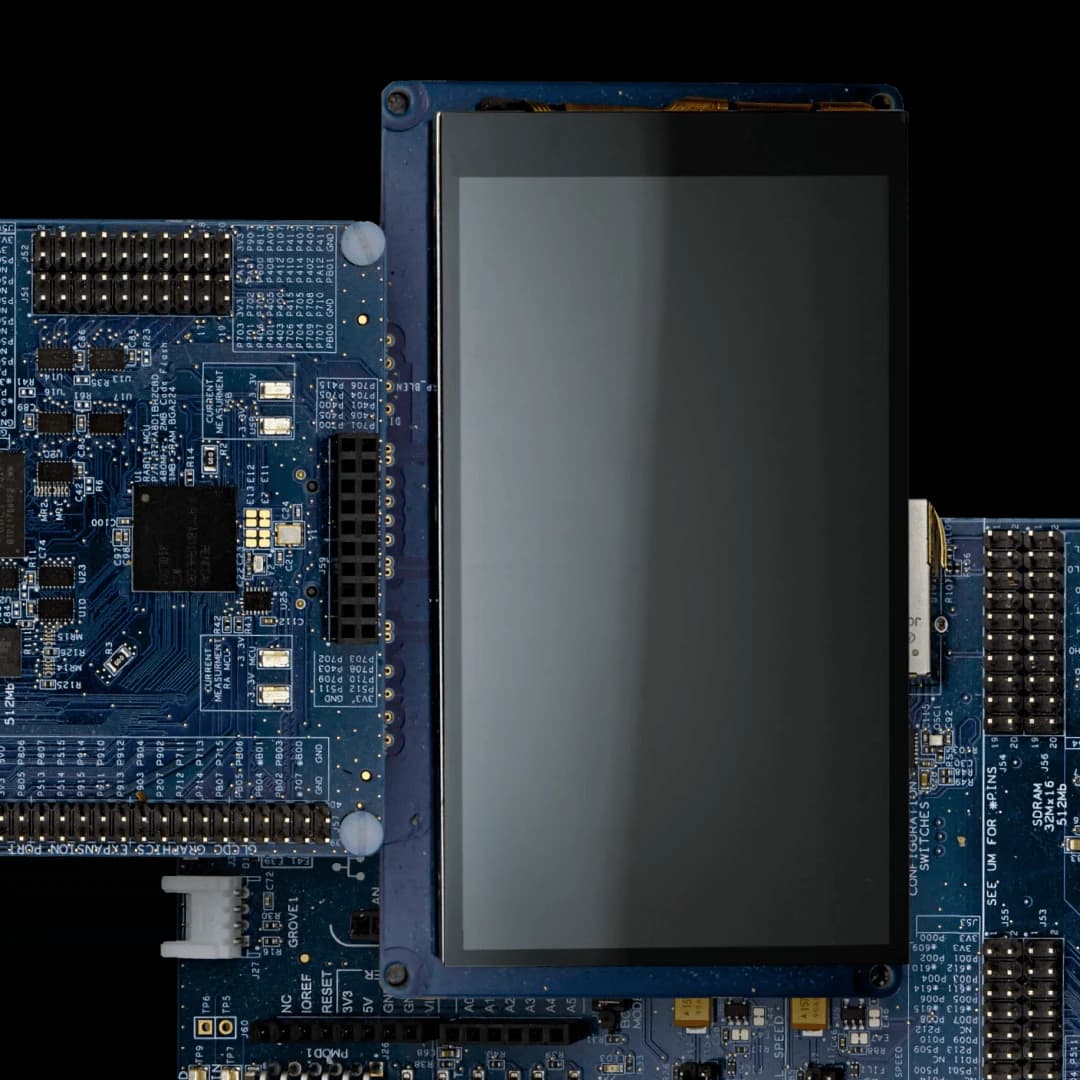

Renesas RA8D1-EK
The EK-RA8D1 evaluation kit enables users to effortlessly evaluate the features of the RA8D1 MCU Group and develop embedded systems applications using Renesas’ Flexible Software Package (FSP) and e2 studio IDE. Utilize rich on-board features along with your choice of popular ecosystem add-ons to bring your big ideas to life. The MCU has a Cortex-M85 core which utilizes the Helium (SIMD) instruction set of Arm. Besides that the chip is equipped with a GPU (called DAVE2D) to off load the MCU.
MCU: R7FA8D1BHECBD (Cortex-M85, 480MHz)RAM: 1MB internal, 64MB external SDRAMFlash: 2MB internal, 64MB External Octo-SPI FlashGPU: Dave2DResolution: 480x854Display Size: 4.5”Interface: 2-lane MIPIColor Depth: 24-bitTechnology: IPSDPI: 217 px/inchTouch Pad: Capacitive

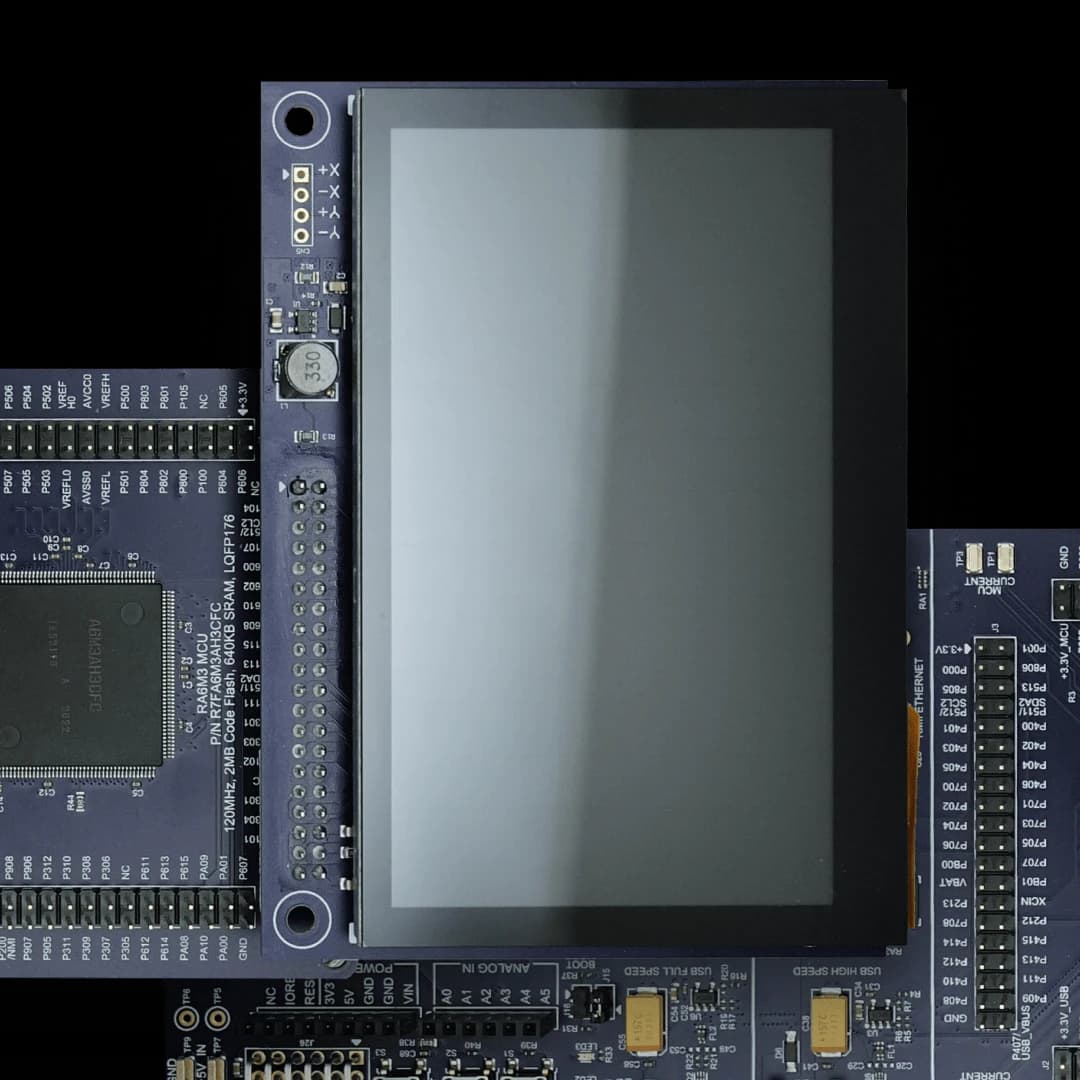

Renesas RA6M3G-EK
The EK-RA6M3G evaluation kit enables users to seamlessly evaluate the features of the RA6M3 MCU Group and develop embedded systems applications using Renesas’ Flexible Software Package (FSP) and e2 studio IDE. Utilize rich on-board features along with your choice of popular ecosystem add-ons to bring your big ideas to life. The MCU has a high-performance Arm Cortex-M4 core and offers a TFT controller with 2D accelerator and JPEG decoder. Additionally, it has Ethernet MAC with individual DMA and USB high-speed interface to ensure high data throughput
MCU: R7FA6M3AH3CFC (Cortex-M4, 120MHz)RAM: 640kB internal SRAMFlash: 2MB internal, 32MB external QSPI FlashGPU: Dave2DResolution: 480x272Display Size: 4.3”Interface: Parallel RGBColor Depth: RGB565Technology: TFT-LCD, TransmissiveDPI: 128 px/inchTouch Pad: Capacitive


Renesas RX72N Envision Kit
Equipped with 32-bit microcomputer, RX family flagship RX72N is an excellent choice for GUI creation using LCD, HMI development such as voice input/output, and IoT device development using Wi-Fi, BLE or Ethernet. By using LVGL's demo repository with Renesas' ecosystem, you can experience immediately and develop quickly. The IC is equipped with the third-generation RX CPU core, the RXv3, and an internal networking of peripheral allowing real-time control high-performance with a single chip. The device also has complete security capability, vital for industrial and consumer equipment today.
MCU: R5F572NNHDFB (RXv3, 240MHz)RAM: 1MB internal SRAMFlash: 4MB internal, 32MB external QSPI FlashGPU: Dave2DResolution: 480x272Display Size: 4.3”Interface: Parallel RGBColor Depth: RGB565Technology: TFT-LCD, TransmissiveDPI: 128 px/inchTouch Pad: Capacitive

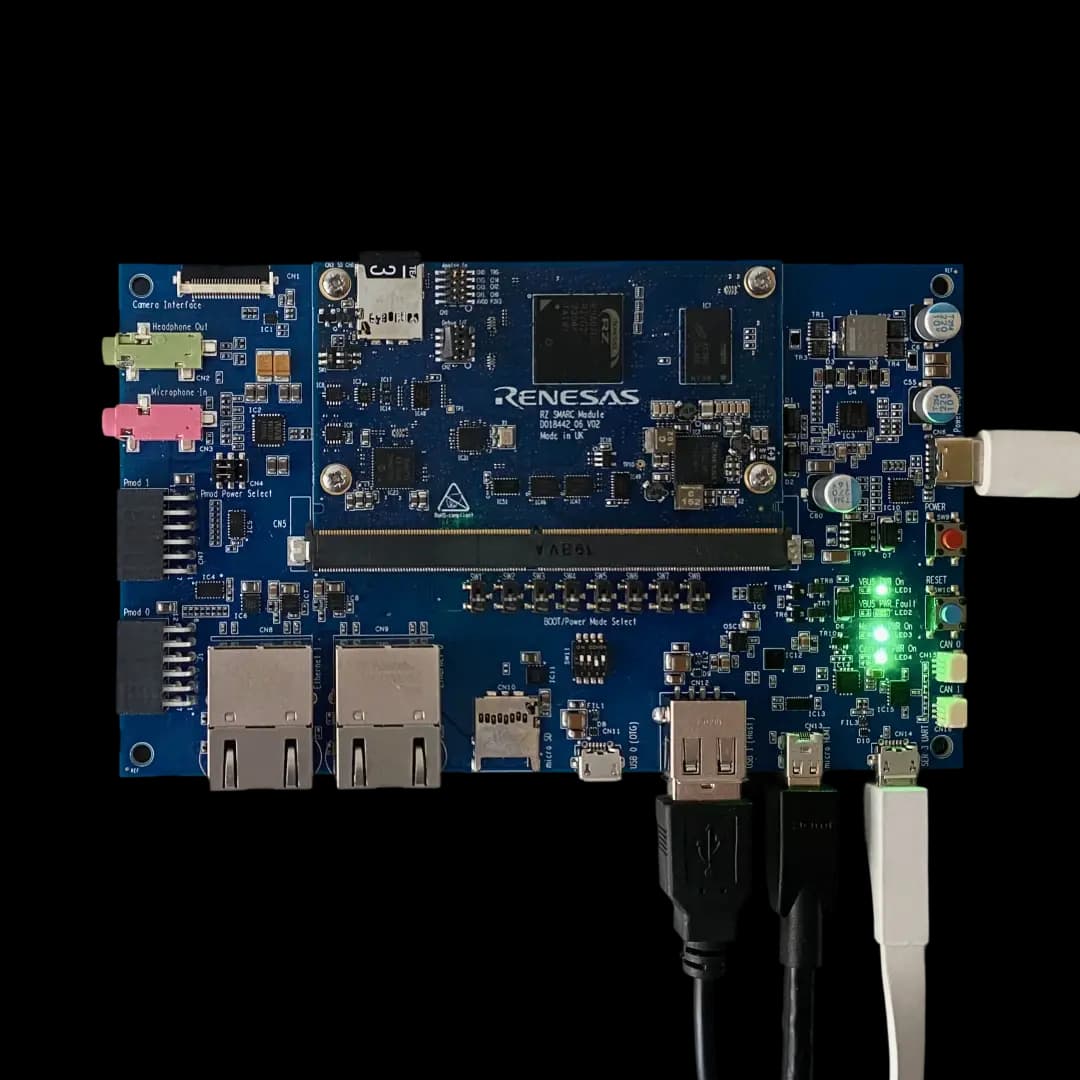

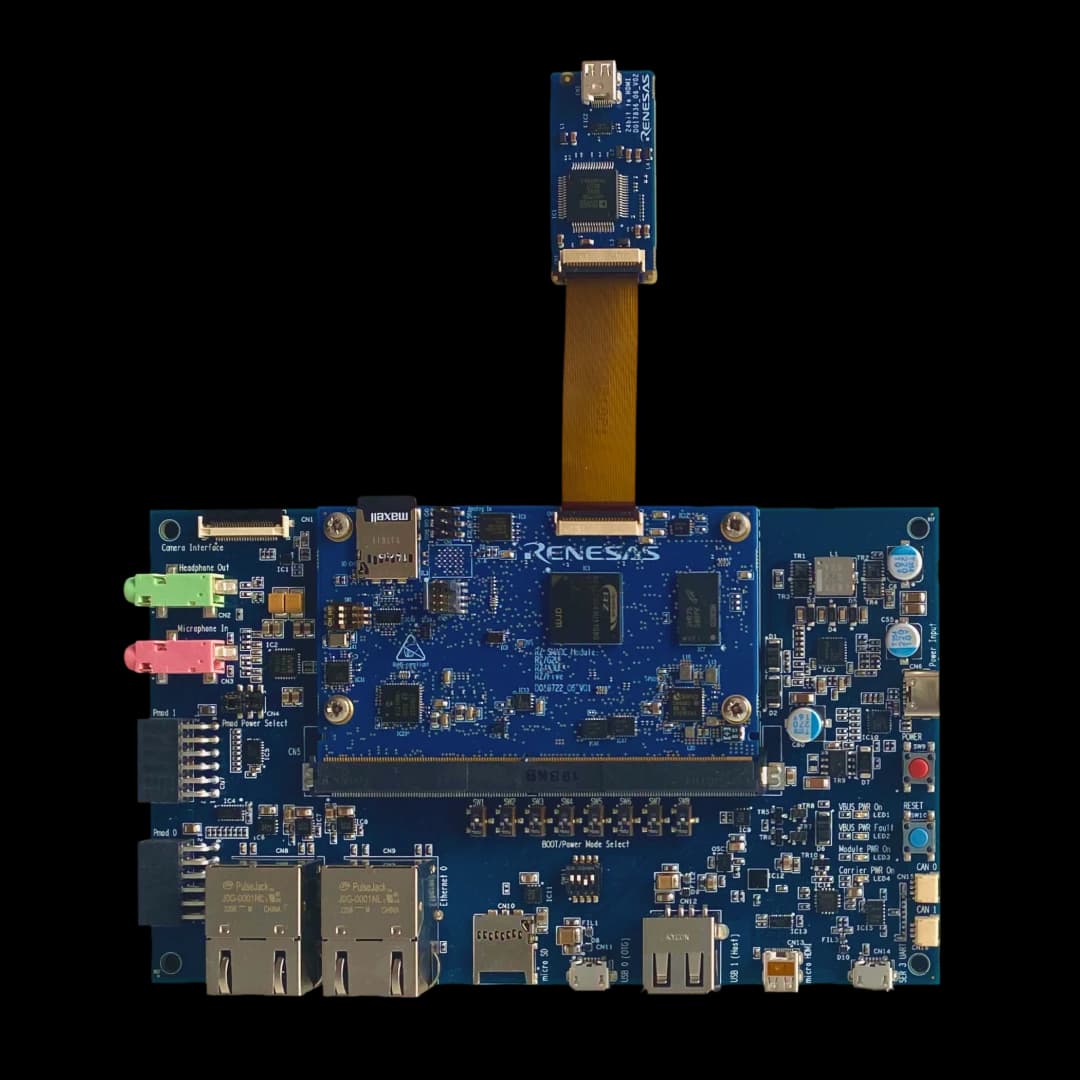

Renesas RZ/G2L-EVKIT
The Renesas RZ/G2L is a general-purpose MPU with a Cortex-A55 (1.2 GHz) and a 3D GPU with video codecs. The RZ/G2L in this evaluation kit is on a SoM, which itself is on a carrier board. The carrier board features IO useful for MPU applications such as Micro-HDMI, 2 ethernet ports, headphone and microphone jacks, USB serial terminal, USB host, camera input, an additional Micro SD card slot, and exposed GPIO headers.
MPU: Arm Cortex-A55 (1.2 GHz)RAM: 2GB DDR4 SDRAMFlash: Micro SD card, 64GB eMMC, 64MB QSPI flashGPU: Arm Mali-G31 (has 3D acceleration)Interface: Micro-HDMITouch Pad: USB touch input
Riverdi

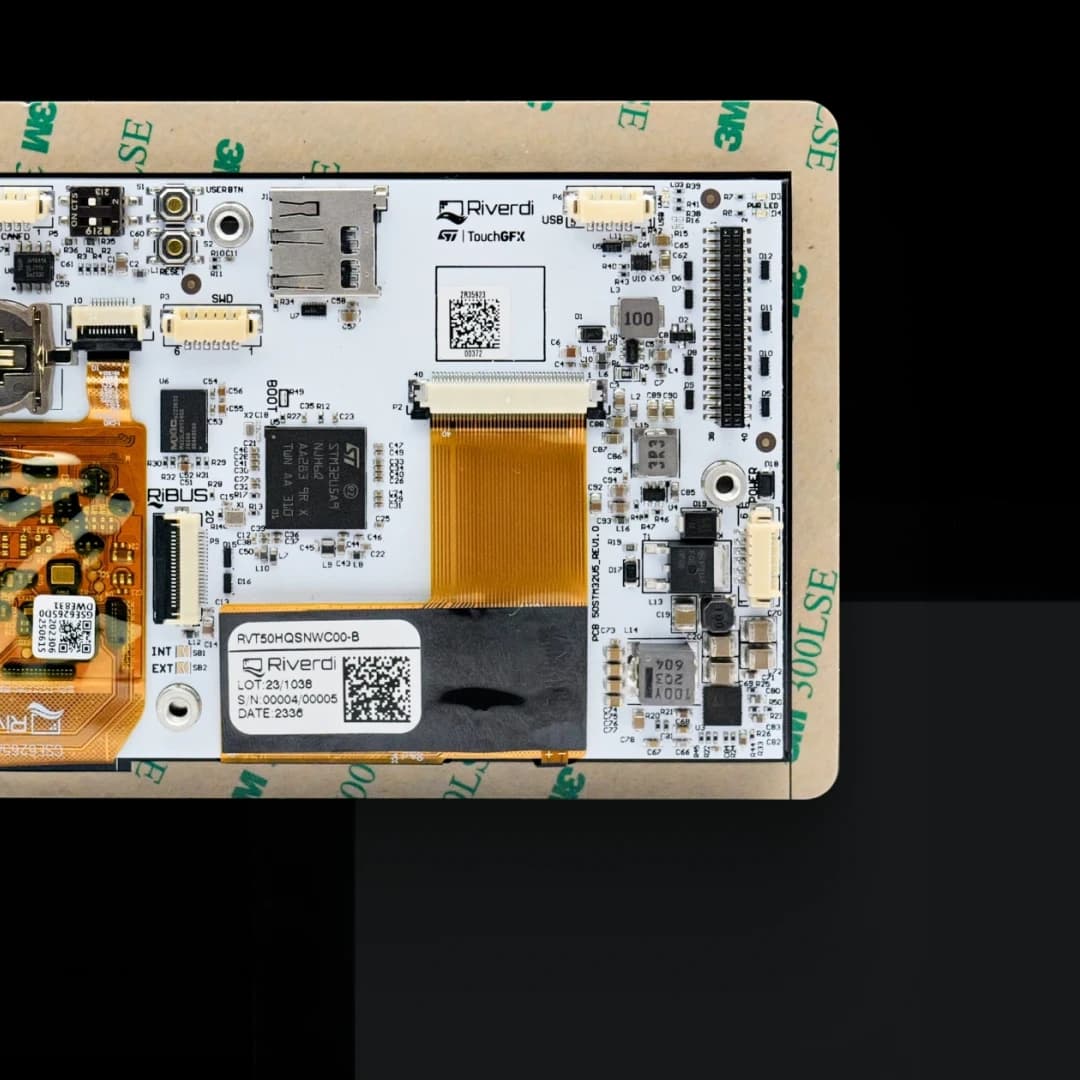

Riverdi STM32U5 Embedded 5”
STM32 Embedded 5” display is all-in-one complete and open-platform solution being able to independently handle the visual layer of devices with the need for high computing performance. The 5-inch STM32 Embedded Displays series are industrial-quality LCD-TFT solutions based on the STM32U599NJH6Q or STM32U5A9NJH6Q microcontroller. It has been designed in a way that allows to meet most of the hardware and programming challenges faced by engineers, including access to all interfaces.
MCU: STM32U599NJH6Q/STM32U5A9NJH6Q (Cotex-M33, 160MHz)RAM: 2.5MB (internal only)Flash: 4MB (internal only)GPU: Neo-Chrom (GPU2D), Chrom-Art (DMA2D), Chrom-GRC (GFXMMU)Resolution: 800x480Display Size: 5.0”Interface: RGB LCDColor Depth: 24-bitDPI: 166 px/inchTechnology: IPSTouch Pad: Projected Capacitive

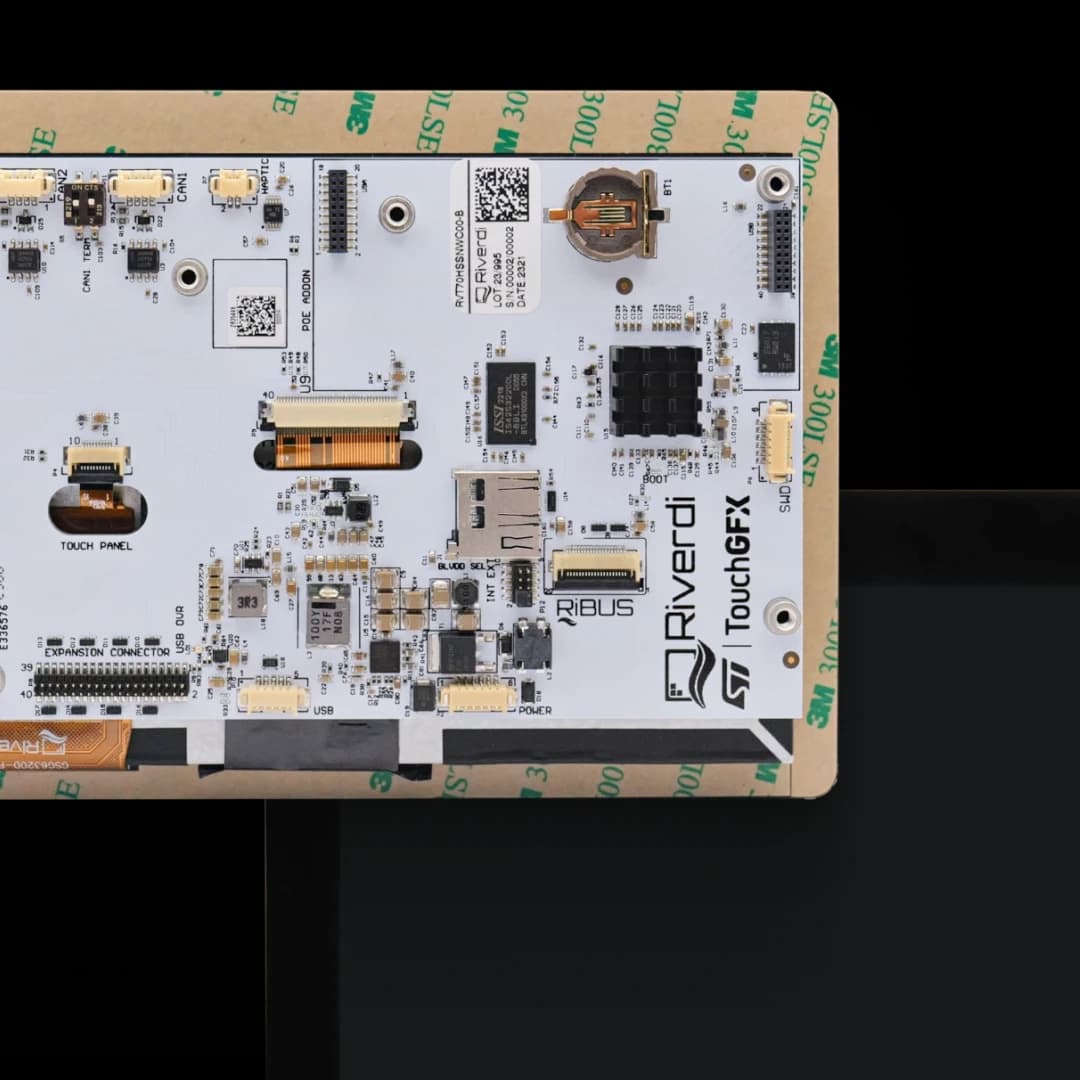

Riverdi STM32H7 Embedded 7”
STM32 Embedded 7” display is all-in-one complete and open-platform solution being able to independently handle the visual layer of devices with the need for high computing performance. The 7-inch STM32 Embedded Displays series are industrial-quality LCD-TFT solutions based on the STM32H757XIH6 microcontroller. It has been designed in a way that allows to meet most of the hardware and programming challenges faced by engineers, including access to all interfaces.
MCU: STM32H757XIH6 (Cortex-M7 480MHz, Cortex-M4 240MHz)RAM: 8MB external, 1MB internalFlash: 64MB external, 2MB internalGPU: Chrom-Art (DMA2D)Resolution: 1024x600Display Size: 7.0”Interface: RGB LCDColor Depth: 24-bitDPI: 170 px/inchTechnology: IPS TFTTouch Pad: Capacitive

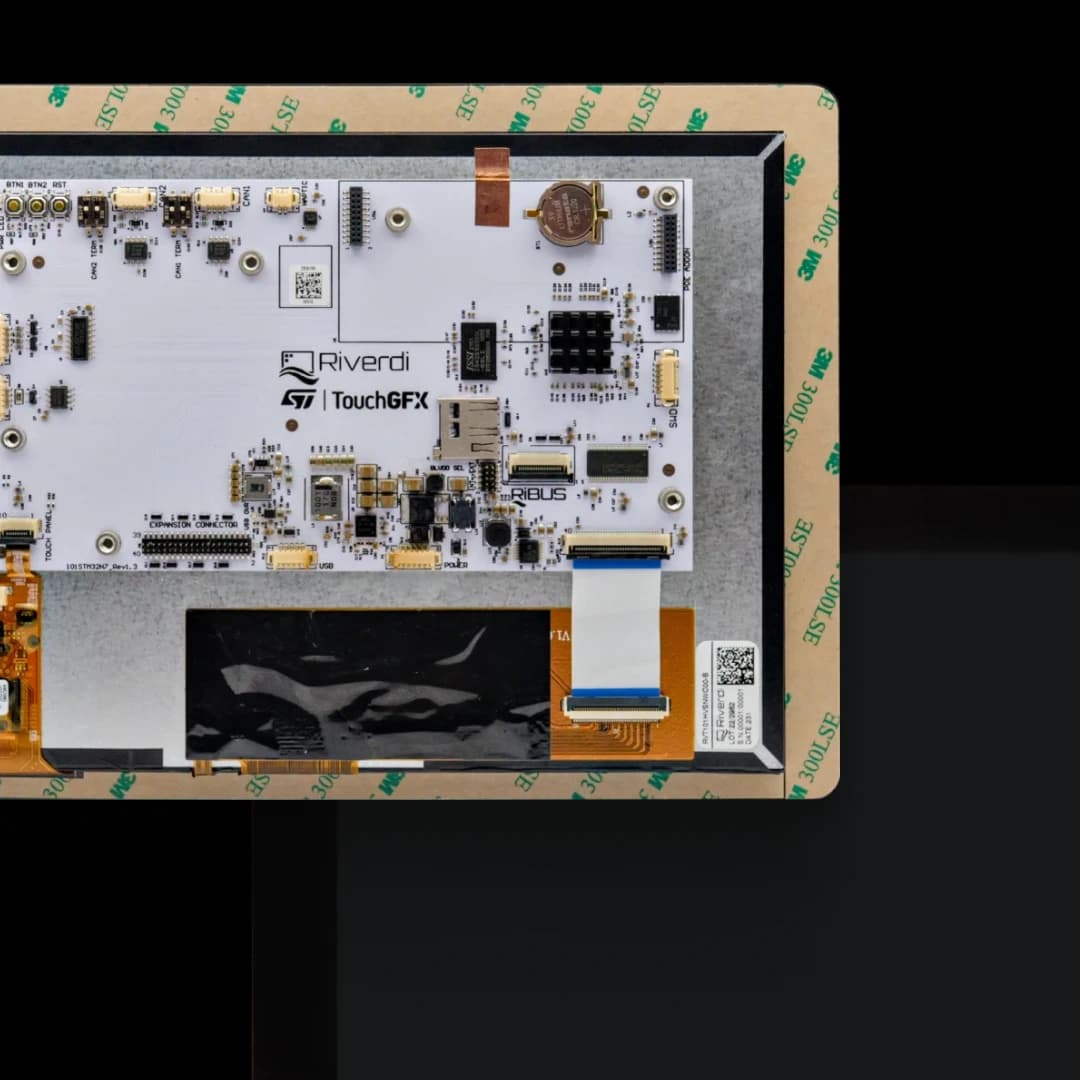

Riverdi STM32H7 Embedded 10.1”
STM32 Embedded 10.1” display is all-in-one complete and open-platform solution being able to independently handle the visual layer of devices with the need for high computing performance. The 10.1-inch STM32 Embedded Displays series are industrial-quality LCD-TFT solutions based on the STM32H757XIH6 microcontroller. It has been designed in a way that allows to meet most of the hardware and programming challenges faced by engineers, including access to all interfaces.
MCU: STM32H757XIH6 (Cortex-M7 480MHz, Cortex-M4 240MHz)RAM: 8MB external, 1MB internalFlash: 64MB external, 2MB internalGPU: Chrom-Art (DMA2D)Resolution: 1080x800Display Size: 10.1”Interface: RGB LCDColor Depth: 24-bitDPI: 133 px/inchTechnology: IPS TFTTouch Pad: Capacitive
ST

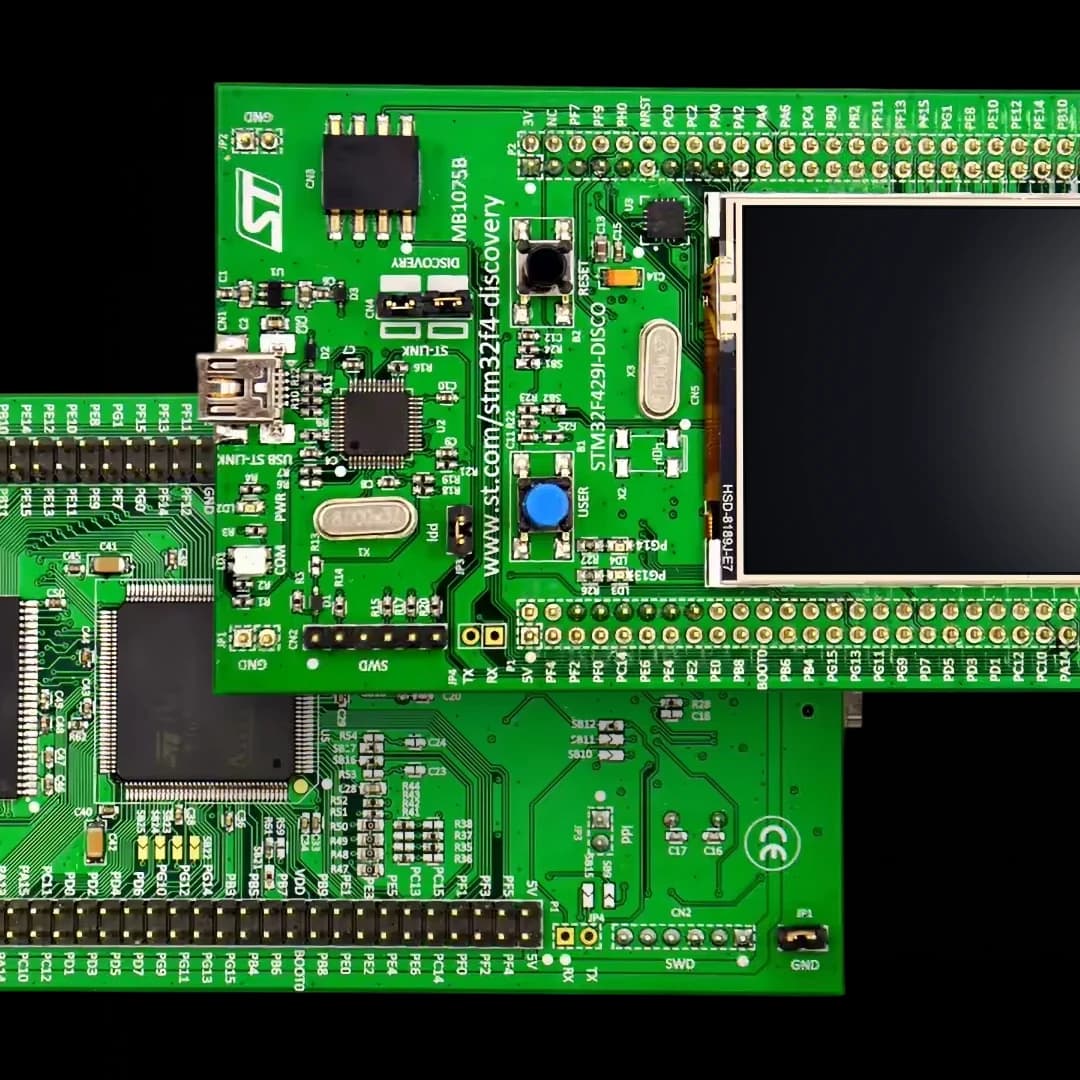

NuttX STM32F429I-DISCO
NuttX is a highly configurable RTOS that implements many POSIX standard interfaces for a familliar development experience and well defined boundaries between components. The STM32F429I-DISCO is a devboard with a touchscreen based on the STM32F429ZI MCU. This option creates a NuttX project for the STM32F429I-DISCO based on the NuttX LVGL defconfig for stm32f429i-disco and a basic directory structure for your custom LVGL app.
MCU: STM32F429ZIRAM: 256 KB internal SRAM, 8 MB external SDRAMFlash: 2 MBGPU: Chrom-ART / DMA2DResolution: 240x320Display Size: 2.4”Interface: SPIColor Depth: 16-bitTechnology: QVGA TFT LCDDPI: 167 px/inchTouch Pad: None

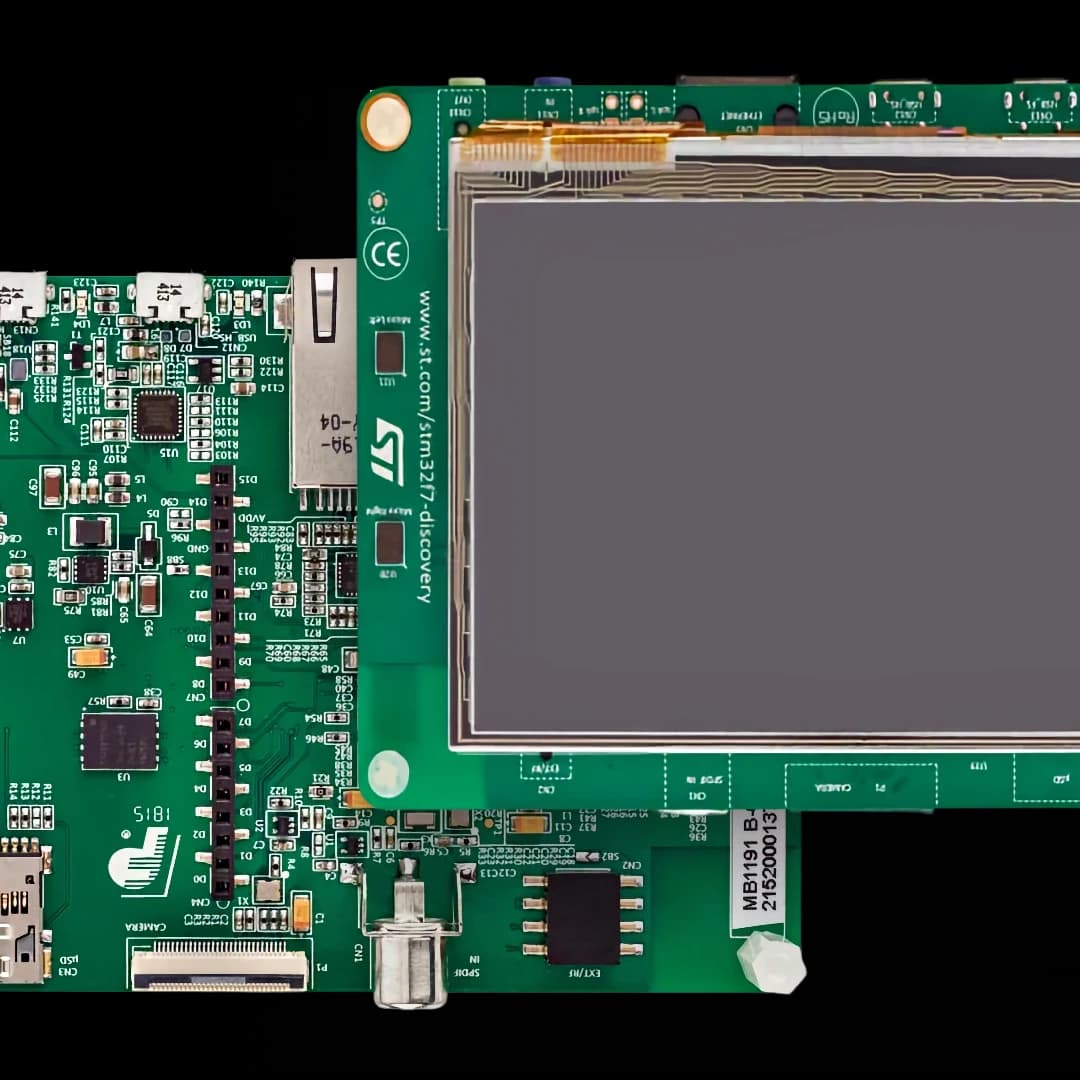

NuttX STM32F746G-DISCO
NuttX is a highly configurable RTOS that implements many POSIX standard interfaces for a familliar development experience and well defined boundaries between components. The STM32F746G-DISCO is a devboard with a touchscreen based on the STM32F746NG MCU. This option creates a NuttX project for the STM32F746G-DISCO based on the NuttX LVGL defconfig for stm32f746g-disco and a basic directory structure for your custom LVGL app.
MCU: STM32F746NGRAM: 340 KB internal SRAM, 8 MB external SDRAMFlash: 1 MBGPU: Chrom-ART / DMA2DResolution: 480x272Display Size: 4.3”Interface: RGB parallelColor Depth: 16-bitTechnology: TFT LCDDPI: 128 px/inchTouch Pad: Capacitive

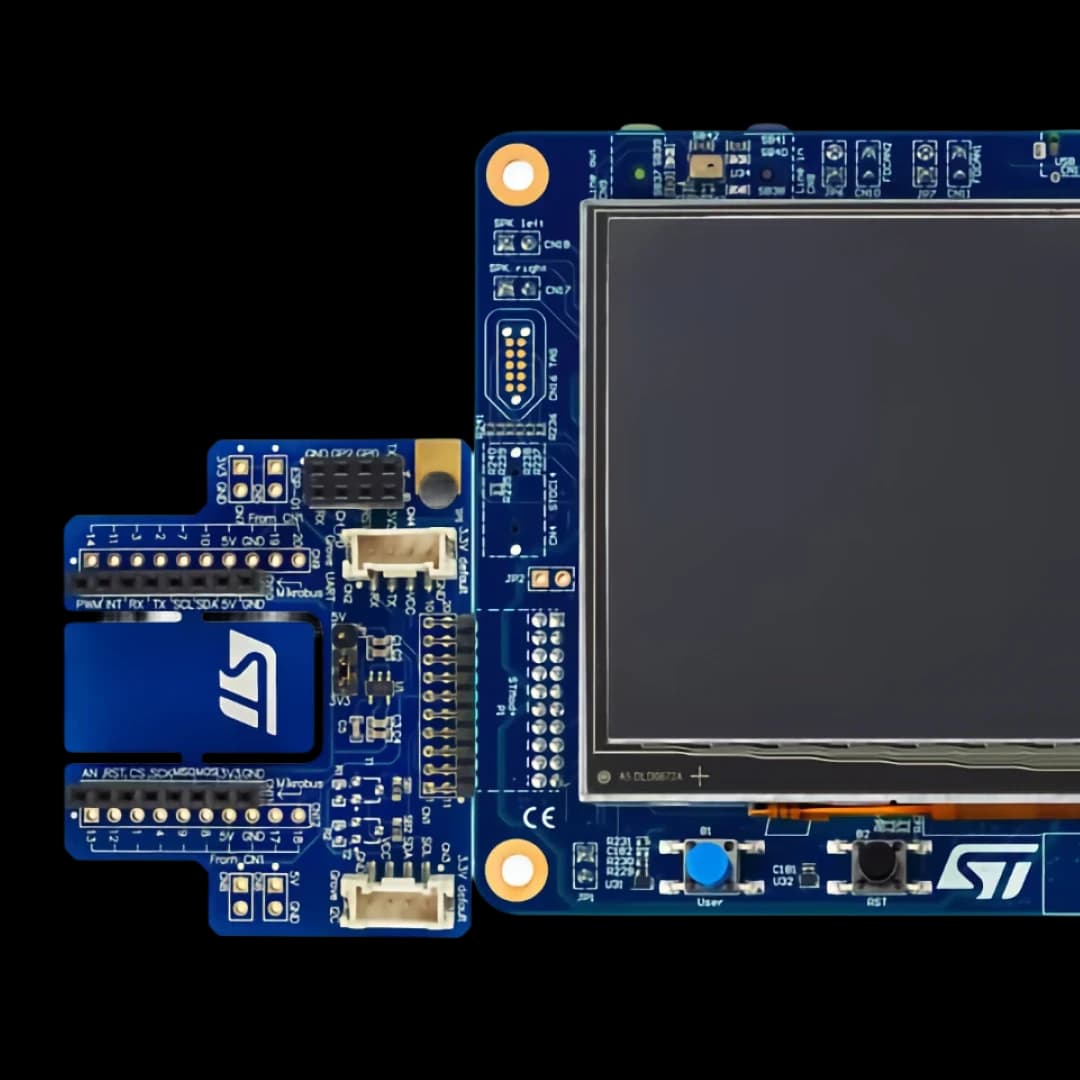

NuttX STM32H745I-DISCO
NuttX is a highly configurable RTOS that implements many POSIX standard interfaces for a familliar development experience and well defined boundaries between components. The STM32H745I-DISCO is a devboard with a touchscreen based on the STM32H745XI MCU. This option creates a NuttX project for the STM32H745I-DISCO based on the NuttX LVGL defconfig for stm32h745i-disco and a basic directory structure for your custom LVGL app.
MCU: STM32H745XIRAM: 1 MB internal SRAM, 8 MB external SDRAMFlash: 2 MBGPU: Chrom-ART / DMA2DResolution: 480x272Display Size: 4.3”Interface: RGB parallelColor Depth: 16-bitTechnology: TFT LCDDPI: 128 px/inchTouch Pad: Capacitive


Riverdi STM32U5 Embedded 5”
STM32 Embedded 5” display is all-in-one complete and open-platform solution being able to independently handle the visual layer of devices with the need for high computing performance. The 5-inch STM32 Embedded Displays series are industrial-quality LCD-TFT solutions based on the STM32U599NJH6Q or STM32U5A9NJH6Q microcontroller. It has been designed in a way that allows to meet most of the hardware and programming challenges faced by engineers, including access to all interfaces.
MCU: STM32U599NJH6Q/STM32U5A9NJH6Q (Cotex-M33, 160MHz)RAM: 2.5MB (internal only)Flash: 4MB (internal only)GPU: Neo-Chrom (GPU2D), Chrom-Art (DMA2D), Chrom-GRC (GFXMMU)Resolution: 800x480Display Size: 5.0”Interface: RGB LCDColor Depth: 24-bitDPI: 166 px/inchTechnology: IPSTouch Pad: Projected Capacitive


Riverdi STM32H7 Embedded 7”
STM32 Embedded 7” display is all-in-one complete and open-platform solution being able to independently handle the visual layer of devices with the need for high computing performance. The 7-inch STM32 Embedded Displays series are industrial-quality LCD-TFT solutions based on the STM32H757XIH6 microcontroller. It has been designed in a way that allows to meet most of the hardware and programming challenges faced by engineers, including access to all interfaces.
MCU: STM32H757XIH6 (Cortex-M7 480MHz, Cortex-M4 240MHz)RAM: 8MB external, 1MB internalFlash: 64MB external, 2MB internalGPU: Chrom-Art (DMA2D)Resolution: 1024x600Display Size: 7.0”Interface: RGB LCDColor Depth: 24-bitDPI: 170 px/inchTechnology: IPS TFTTouch Pad: Capacitive


Riverdi STM32H7 Embedded 10.1”
STM32 Embedded 10.1” display is all-in-one complete and open-platform solution being able to independently handle the visual layer of devices with the need for high computing performance. The 10.1-inch STM32 Embedded Displays series are industrial-quality LCD-TFT solutions based on the STM32H757XIH6 microcontroller. It has been designed in a way that allows to meet most of the hardware and programming challenges faced by engineers, including access to all interfaces.
MCU: STM32H757XIH6 (Cortex-M7 480MHz, Cortex-M4 240MHz)RAM: 8MB external, 1MB internalFlash: 64MB external, 2MB internalGPU: Chrom-Art (DMA2D)Resolution: 1080x800Display Size: 10.1”Interface: RGB LCDColor Depth: 24-bitDPI: 133 px/inchTechnology: IPS TFTTouch Pad: Capacitive
Texas Instruments

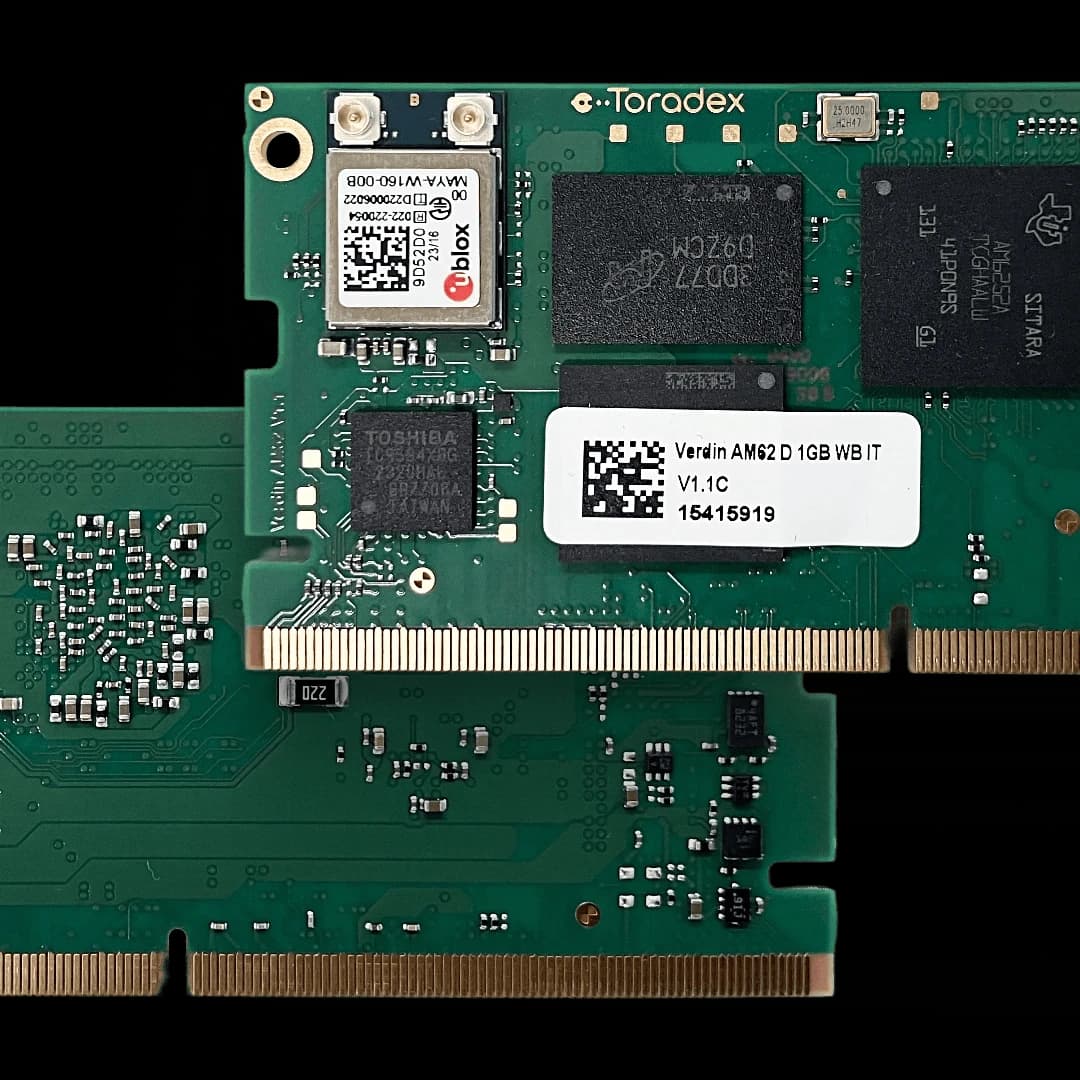

Toradex Verdin AM62”
The Verdin AM62 is a cost-effective Computer on Module (CoM) based on the TI Sitara AM62x processor, offering up to four Cortex-A53 cores. It provides an attractive entry point into the Verdin ecosystem, with scalability through pin-compatibility with the Verdin iMX8M Mini and Plus modules. Featuring integrated Wi-Fi 4 and Bluetooth 5.2, or optional Wi-Fi 6 and Bluetooth 5.3 for custom configurations, it supports Torizon’s OTA updates, device monitoring, and remote access. Designed for power-constrained applications, the Verdin AM62 includes advanced power management and hardware-based security for secure boot and cryptographic acceleration.
MPU: 2 64-bit Arm® Cortex®-A53 @1.4GHzMCU: Arm® Cortex®-M4F MCU @400MHzRAM: 1 GB 16-Bit data bus with inline ECC (1600 MT/s)Flash: 8GB eMMC FlashGPU: PowerVR Rogue AXE-1-16M

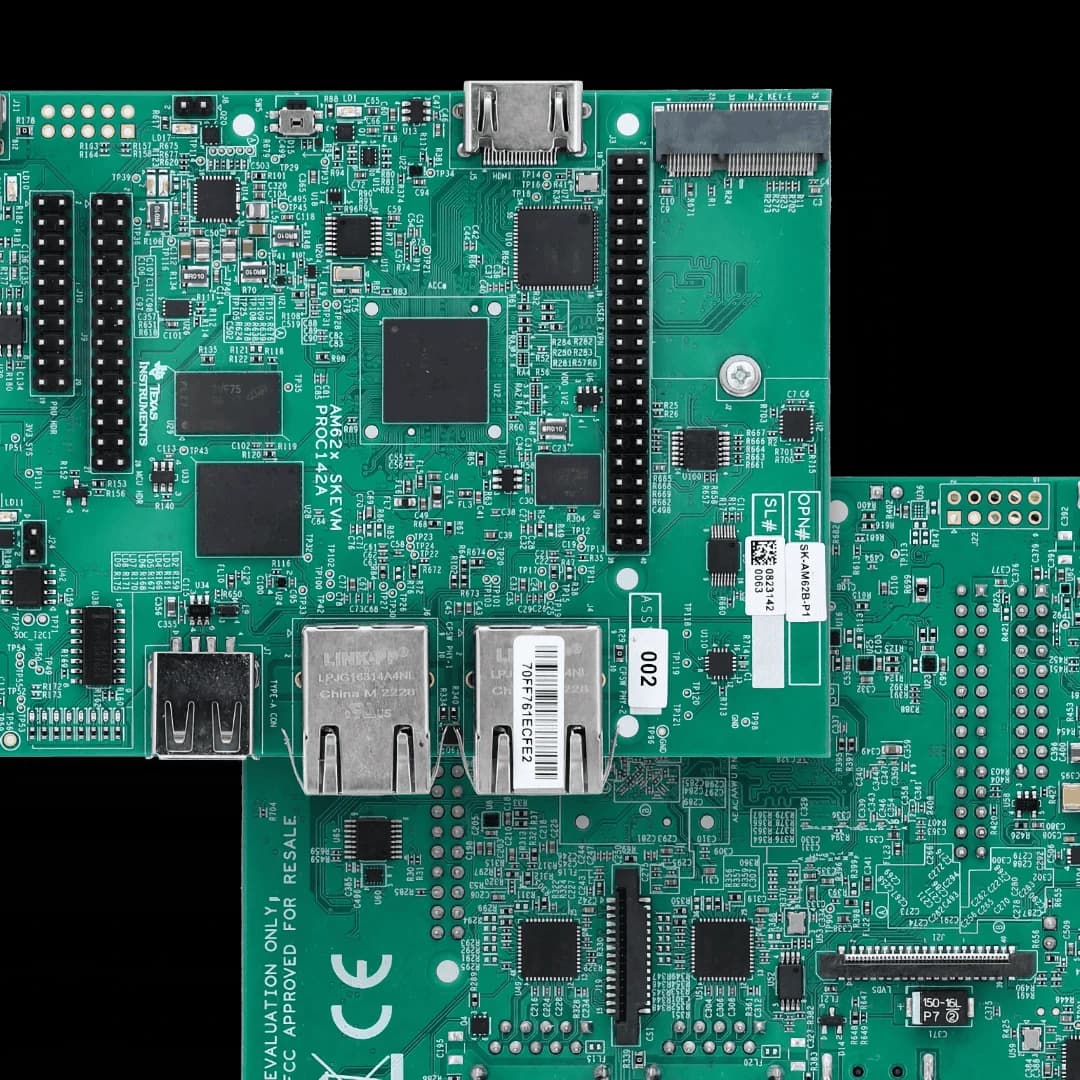

Texas Instruments SK-AM62B-P1
The Texas Instruments SK-AM62B-P1 starter kit (SK) evaluation module (EVM) is a stand-alone test and development platform built around the AM62x system-on-a-chip (SoC). AM62x processors are comprised of a quad-core 64-bit Arm®-Cortex®-A53 microprocessor and single-core Arm Cortex-M4F MCU. It features an HDMI port for up to 2K 60fps displays and two ethernet ports. It has an embedded PowerVR GPU
MPU: AM625 with Quad 64-bit Arm® Cortex®-A53 @1.4GHzMCU: Arm® Cortex®-M4F MCURAM: 2 GB DDR4 16-Bit data bus with inline ECC (1600 MT/s)Flash: Micro SD CardGPU: PowerVR

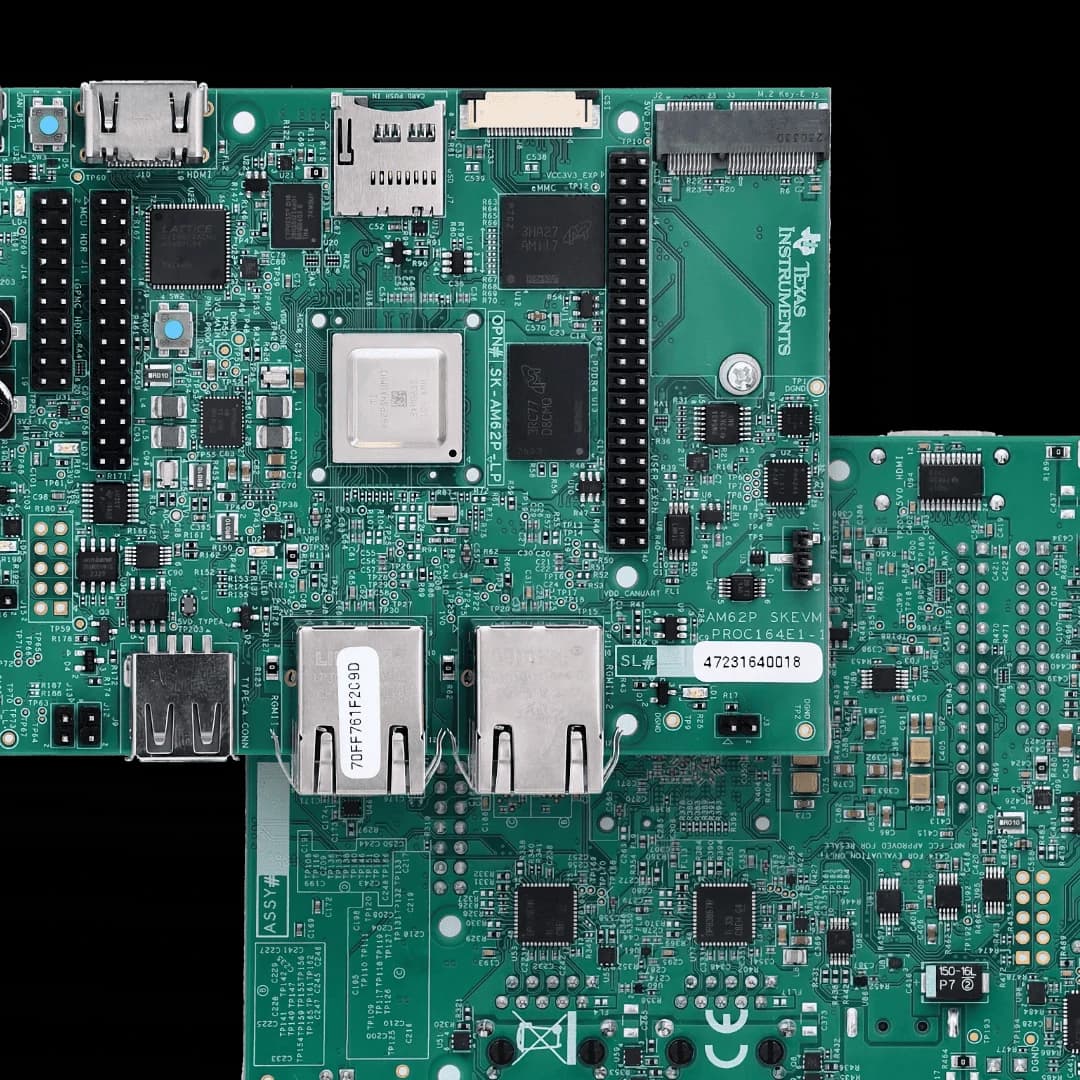

Texas Instruments SK-AM62P-LP
The Texas Instruments SK-AM62P-LP starter kit (SK) evaluation module (EVM) is built around the AM62P display processor, which includes scalable Arm® Cortex®-A53 performance and embedded features, such as high-performance 3D-GPU, 4K video acceleration, and extensive peripherals. SK-AM62P-LP is for those looking to develop automotive and industrial applications, including automotive digital instrumentation, automotive displays, industrial HMI and more. It features an HDMI port for up to 4K 60fps displays, two ethernet ports, an M.2 expansion port for wireless connectivity or storage, and many other peripherals.
MPU: AM625P with Quad 64-bit Arm® Cortex®-A53 @1.4GHzMCU: two ARM® Cortex®-R5F single core up to 800MHzRAM: 8 GB LPDDR4 32-Bit data bus with inline ECC (3200 MT/s)Flash: Micro SD CardGPU: PowerVR
Toradex


Toradex Verdin AM62”
The Verdin AM62 is a cost-effective Computer on Module (CoM) based on the TI Sitara AM62x processor, offering up to four Cortex-A53 cores. It provides an attractive entry point into the Verdin ecosystem, with scalability through pin-compatibility with the Verdin iMX8M Mini and Plus modules. Featuring integrated Wi-Fi 4 and Bluetooth 5.2, or optional Wi-Fi 6 and Bluetooth 5.3 for custom configurations, it supports Torizon’s OTA updates, device monitoring, and remote access. Designed for power-constrained applications, the Verdin AM62 includes advanced power management and hardware-based security for secure boot and cryptographic acceleration.
MPU: 2 64-bit Arm® Cortex®-A53 @1.4GHzMCU: Arm® Cortex®-M4F MCU @400MHzRAM: 1 GB 16-Bit data bus with inline ECC (1600 MT/s)Flash: 8GB eMMC FlashGPU: PowerVR Rogue AXE-1-16M


Toradex Verdin imx8mm
The Verdin imx8m mini is a cost-effective Computer on Module (CoM) based on the NXP imx8m mini processor, offering up to four Cortex-A53 cores. It features integrated Wi-Fi 5 and Bluetooth 5.3, Torizon’s OTA updates, device monitoring, and remote access. Designed for power-constrained applications, the Verdin imx8m mini includes advanced power management and hardware-based security for secure boot and cryptographic acceleration.
MPU: 4 64-bit Arm® Cortex®-A53 @1.8GHzMCU: Arm® Cortex®-M4 MCU @400MHzRAM: 2 GB LPDDR4 32-Bit data bus with inline ECC (1500 MT/s)Flash: 16GB eMMC FlashGPU: 2D: Vivante GC320, 3D: Vivante GCNanoUltra
Viewe


Viewe ESP32 S3 Smart Display
The Viewe ESP32 S3 Smart Display, designed and developed by Viewe Display, features an 800×480 resolution with 300 cd/m² brightness and multi-point capacitive touch. Powered by an ESP32-S3 (240MHz) with 8MB RAM and 16MB Flash, it supports Wi-Fi, BLE 5, and BLE Mesh. Designed for Arduino, ESP-IDF, and LVGL platforms, it offers UART and USB interfaces for versatile IoT and AIoT applications.
MCU: ESP32-S3 (240MHz)RAM: 512 KB (internal), 8MB (external)Flash: 16 MBGPU: NoneResolution: 800x480Display Size: 7.0”Interface: RGB LCDColor Depth: 24-bitTechnology: TNDPI: 133 px/inchTouch Pad: Capacitive (GT911)
Board reviews & certifications
Apr 18, 2024

gen4-ESP32-32CT
The gen4 – ESP32 series of modules Designed and Manufactured by 4D Systems range from 2.4" to 3.5" display sizes with resolutions from 240x320 to 320x480 offering an SPI Interface between the screen and the ESP32-S3R8 Processor. Available in Non-Touch, Capacitive Touch, and Capacitive Touch with Cover Lens Bezel (CLB). The ESP32-S3R8 Processor makes available multiple GPIO which include UART, SPI, I2C, PWM, and Analog functionality, while also serving interfaces for the LCD Touch screen, Quad SPI Flash, microSD Card, and Native USB-C. The user interface to the gen4-ESP32 series is a 30-pin FPC/ZIF socket, designed for a 30-way 0.5mm pitch FFC cable, for easy and simple connection to an application or motherboard, or for connecting to accessory boards for a range of functionality advancements.
Apr 18, 2024

gen4-ESP50-32CT
The gen4 – ESP32 series of modules Designed and Manufactured by 4D Systems range from 4.3" to 9" display sizes with a resolution of 800x480 offering an RGB Interface between the screen and the ESP32-S3R8 Processor. Available in Non-Touch, Resistive Touch, Capacitive Touch, and Capacitive Touch with Cover Lens Bezel (CLB). The ESP32-S3R8 Processor makes available multiple GPIO which include UART, SPI, I2C, PWM, and Analog functionality, while also serving interfaces for the LCD Touch screen, Quad SPI Flash, microSD Card, and Native USB-C. The user interface to the gen4-ESP32 series is a 30-pin FPC/ZIF socket, designed for a 30-way 0.5mm pitch FFC cable, for easy and simple connection to an application or motherboard, or for connecting to accessory boards for a range of functionality advancements.
Feb 13, 2024

EK-RA8D1
The EK-RA8D1 evaluation kit enables users to effortlessly evaluate the features of the RA8D1 MCU Group and develop embedded systems applications using Renesas' Flexible Software Package (FSP) and e2 studio IDE. Utilize rich on-board features along with your choice of popular ecosystem add-ons to bring your big ideas to life.
Feb 06, 2024

Embedded 10.1” display
STM32 Embedded 10.1” display is all-in-one complete and open-platform solution being able to independently handle the visual layer of devices with the need for high computing performance. The STM32 Embedded Displays series are industrial-quality LCD-TFT solutions based on the STM32H757XIH6 microcontroller. It has been designed in a way that allows to meet most of the hardware and programming challenges faced by engineers, including access to all interfaces.
Feb 06, 2024

Embedded 7.0” display
STM32 Embedded 7.0” display is all-in-one complete and open-platform solution being able to independently handle the visual layer of devices with the need for high computing performance. The STM32 Embedded Displays series are industrial-quality LCD-TFT solutions based on the STM32H757XIH6 microcontroller. It has been designed in a way that allows to meet most of the hardware and programming challenges faced by engineers, including access to all interfaces.
Feb 06, 2024

Embedded 5.0” display
The Riverdi RVT50HQSNWC00-B STM32 Embedded 5.0” display is an all-in-one complete and open-platform solution capable of independently handling the visual layer of devices with the need for high computing performance. The STM32 5.0” Embedded Displays series are industrial-quality LCD-TFT solutions based on the STM32U599NJH6Q/STM32U5A9NJH6Q microcontroller. They have been designed in a way that allows them to meet most of the hardware and programming challenges faced by engineers, including access to all interfaces.
Dec 16, 2023

Generalplus GP328530A
GP328530A, a highly integrated SoC by Generalplus, is a high cost-performance ratio solution for multi-media and video streaming applications. It is developed with a high performance and power efficient ARM's ARM926EJ-S core operating at up to CPU/system 513/171MHz with significant enhancements in image, video processing, and power management for power savings. Other features include DDR/DDR2 memory, GPDLA Deep Learning Accelerator, JPEG CODEC engine, TFT-LCD/MIPI DSI interface, MIPI CSI interface, scaling engine, Image Processing Unit (IPU), Picture Process Unit (PPU), Sound Process Unit (SPU), Ethernet MAC, USB 2.0 High speed etc. The GP328530A processor is designed to connect with various types of memory card interfaces such as SD and MMC. Not only does GP328530A feature the high-speed performance, but it is also a cost-effective system and - the most importantly - compatible with all ARM based programs.
Jun 14, 2023

RA6M3 HMI board
The RA6M3 HMI board is a high-cost-performance graphic evaluation kit brought to you by RT-Thread in collaboration with Renesas and LVGL. Say goodbye to traditional HMI + main control board hardware and hello to the full capabilities of HMI + IoT + control with just one set of hardware. With Renesas’ high-performance RA6M3 chip and RT-Thread’s software ecosystem at its core, the HMI Board packs a punch with its strong hardware performance and rich software ecosystem. This makes it easier than ever for developers to create cutting-edge GUI smart hardware products.
May 09, 2023

ESP Terminal 3.5"
This Elecrow terminal is a microcontroller based on the ESP32 master. It adopts Xtensa 32-bit LX7 dual-core processor with a main frequency of up to 240Mhz, supports 2.4GHz Wi-Fi and Bluetooth 5 (LE), and can easily handle common edge terminal device application scenarios, such as industrial control, agricultural production environment detection and processing, intelligent logistics monitoring, smart home scenarios and more. This terminal also has a 3.5-inch parallel RGB interface capacitive touch screen with a resolution of 320x480 to ensure perfect image output at a frame rate (FPS) of 60. On the back of this terminal, we have introduced 4 Crowtail interfaces, which can be used with our Crowtail series sensors, plug and play, and create more interesting projects quickly and conveniently. In addition, it is also equipped with an SD card slot for extended storage (SPI leads) and a buzzer function. It supports ESP-IDF and Arduino IDE development, and is compatible.
May 03, 2023

Apollo4B
DASQI Apollo4B board can display 454*454 Round AMOLED Display, QSPI interface, Capacitive touch pad, and has SD-CARD slot , supported LVGL file system interface.The board also has RTK GPS high accuracy location positioning, Accelerometer + GYRO + E-Compass, Barometer, Current Sensor features, and I2C/SPI/UART/MIPI interfaces.
Mar 17, 2023

IT986x EVB
IT986x SoC series is equipped with dual ARM9 CPUs which can operate at up to 800MHz. It has a powerful 2D graphics engine that supports up to 1080p video, allowing for the implementation of a GUI that is both vivid and responsive. As for the panel resolution, it can display up to 2160*1080 pixels. MIPI, RGB, LVDS and other panel interfaces are also supported. It is embedded with up to 1Gb DDR3 memory, with various peripheral interfaces reserved, giving designers great expandability. Support FreeRTOS within the comprehensive ITE SoC SDK.
Jan 18, 2023

NuMaker-HMI-MA35D1-S1
The NuMaker-HMI-MA35D1-S1 is an evaluation board for Nuvoton NuMicro MA35D1 series microprocessors, and consists of three parts: a NuMaker-SOM-MA35D16A81 SOM board, a NuMaker-BASE-MA35D1B1 base board and a 7” TFT-LCD daughter board. The SOM board integrates core components to simplify the system design, based on MA35D16A887C (BGA312 package, and stacking a 256 MB DDR), PMIC power solution, a 16 GB eMMC Flash, and two Gigabit Ethernet PHY. The NuMaker-HMI-MA35D1-S1 has rich peripherals such as 2 sets of Gigabit Ethernet, USB2.0 high-speed host and device, 2 sets of CAN FD, and SPI, I2C, UART, RS-485 serial communication ports for users to facilitate the evaluation in HMI and industrial control, home appliances, 2-wheel cluster, medical device, new energy applications, Machine Learning or your creative applications.
Dec 08, 2022

STM32H7B3I-DK
The STM32H7B3I-DK Discovery kit is a complete demonstration and development platform for STMicroelectronics Arm® Cortex®-M7 core-based STM32H7B3LIH6QU microcontroller. The full range of hardware features available on the board helps users enhance their application development by an evaluation of almost all peripherals (such as USB OTG_HS, microSD, USART, FDCAN, audio DAC stereo with audio jack input and output, camera, SDRAM, Octo-SPI Flash memory and RGB interface LCD with capacitive touch panel). ARDUINO® Uno V3 connectors provide easy connection to extension shields or daughterboards for specific applications.
Feb 18, 2022

NuMaker-HMI-N9H30
Nuvoton N9H30 series with ARM926EJ-S core can operate at up to 300 MHz and can drive up to 1024x768 pixels in RGB parallel port. It integrated TFT LCD controller and 2D graphics accelerator, up to 16.7 million colors (24-bit) LCD screen output, and provides high resolution and high chroma to deliver gorgeous display effects. It embedded up to 64 MB DDRII SDRAM, along with ample hardware storage and computing space for excellent design flexibility.
Sep 09, 2021

IDO-SMLCD72-V1-2EC
IDO-SMLCD72-V1-2EC is powerful board with OpenWRT operating system, 1024x600 7” screen and 1.2 GHz CPU.
Sep 09, 2021

WT-86-32-3ZW1
WT-86-32-3ZW1 intelligent panel is a product based on ESP32-S2-WROVER module that drivers a 320×320 3.92” touch screen. The ESP module can also handle the wireless connection. It can be integrated into many intelligent products as a small and convenient intelligent panel.You can develop with ESP-IDF or the Wireless-Tag’s custom UI editor called 8ms.
Jun 19, 2021

i.MX RT595 EVK
The i.MX RT595 EVK features NXP’s advanced implementation of the Arm® Cortex®-M33 core, combined with an advanced GPU called VGLITE.
May 12, 2021

LPCXpresso54S018 (OM13098UL)
LPC54S018-EVK earned Standard LVGL board certification, which means the users can be sure that this board can be easily used with LVGL and they can expect decent performance and quality. Note that the LPC54018 based (LPCXpresso54018, part no. OM40003) comes with an LCD already attached. From the point of view of a graphics application, it behaves identically to LPC54S018 board (LPCXpresso54S018, part no LPC54S018-EVK) for which you need to get the LCD and attached separately.
May 12, 2021

i.MX RT1064 EVK
The i.MX RT1064 EVK uses the i.MX RT1064 crossover MCU, running at 600 MHz featuring NXP’s advanced implementation of the Arm® Cortex®-M7 core. It's the first i.MX RT devices that includes on-chip flash (4 MB). Support for FreeRTOS™ available within the MCUXpresso SDK. The i.MX RT1064 EVK board is now supported by Arm® Mbed™ OS and Zephyr™ OS, both open-source embedded operating systems for developing the Internet of Things.
May 12, 2021

i.MX RT1060 EVK
The i.MX RT1060 EVK uses the i.MX RT1060 crossover MCU, running at 600 MHz featuring NXP’s advanced implementation of the Arm® Cortex®-M7 core. The 1 MB on-chip RAM, GPU and many external memory make this board ideal for UI applications. Support for FreeRTOS™ available within the MCUXpresso SDK. The i.MX RT1060 EVK board is now supported by Arm® Mbed™ OS and Zephyr™ OS, both open-source embedded operating systems for developing the Internet of Things.
Mar 24, 2021

LPCXpresso54628 (OM13098UL)
The board is comprised of target LPC54628 device with an onboard, CMSIS-DAP / SEGGER® J-Link compatible debug probe. MCUXpresso configuration tools and extensive SDK drivers/examples are available for the board at mcuxpresso.nxp.com. The LPCXpresso54628 board is an Arm® Mbed™-Enabled platform for developing the Internet of Things with a free, open-source embedded operating system. In addition to standard LPCXpresso V3 features, this board includes a complete set of peripheral interfaces to enable developers to fully explore the capabilities of LPC546xx devices.
Mar 24, 2021

i.MX RT1050 EVK
Powered by an i.MX RT1050 crossover MCU, featuring NXP’s advanced implementation of the Arm® Cortex®-M7 core. This core operates at speeds up to 600 MHz to provide high CPU performance and great real-time response. Support for FreeRTOS™ available within the MCUXpresso SDK and also supported by Arm® Mbed™ OS and Zephyr™ OS.
Mar 23, 2021

Nscreen32
YeaCreate Nscreen32 is an ESP32 based display development board kit. It includes ESP32-WROVER-IE (16M Flash + 8M PSRAM), a 480x320 4 inch TFT display, and a GT911 capacitance touch screen. It's also the 1st LVGL official certified board in the world. Nscreen32 is a cost-effective solution for IoT applications and for embedded systems in general.
Project Maintenance Program
Make it easy to get started with your HMI board and LVGL. We can maintain a GitHub repository where we keep LVGL updated, optimize performance, add an easy-to-follow user guide, respond to user issues, and record a video to showcase your device in action.
Learn more
