ESP32 + LVGL Quick Start Guide

Espressif has announced that they officially support LVGL on their ESP32 chips. Adding GUI to your ESP32-based IoT device is easier than ever. I got it working in 15 minutes, so it's really worth a try! I'll show you two approaches, including a project where I achieved 30 FPS with ESP32 on a 320x240 display.

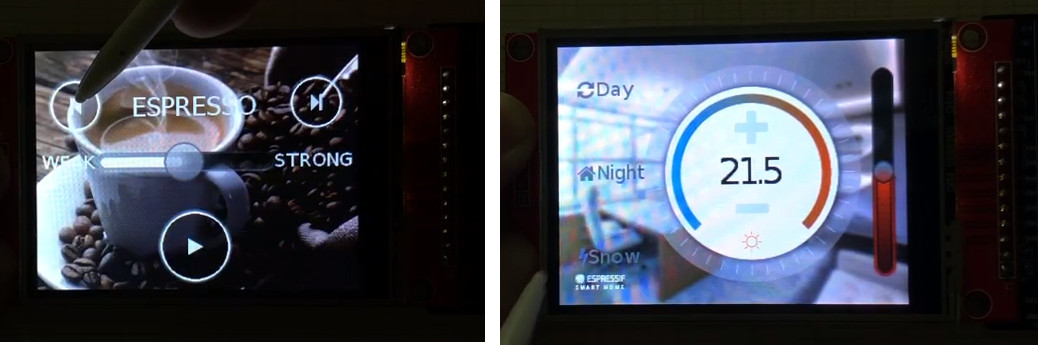

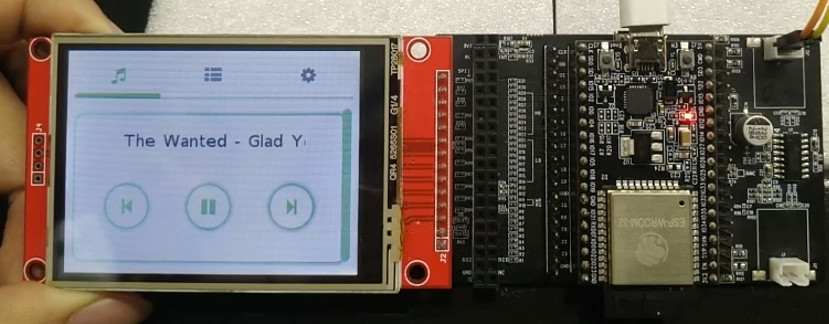

Here are some examples created by Espressif:

Still Don't Know ESP32?#

ESP32 is a powerful SoC (System on Chip) developed by Espressif. The modules built with this chip are extremely popular in IoT applications where connectivity and low-power operation are essential. In addition, ESP32 provides high performance with a dual-core 200 MHz MCU. The modules are usually equipped with external flash (typically 4 MB) which can be mapped as program memory.

Regarding connectivity, the modules come with fully certified Wi-Fi, BT, and BLE interfaces.

One of the most popular modules is ESP32 WROOM for only $4.

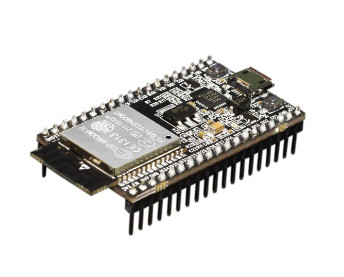

To get started you should buy a development board with an ESP32 module. For example ESP32-DevkitC.

You don't need any extra hardware like a programmer because the ESP32 can be programmed via a Serial Port using a simple Micro USB cable.

GUI with ESP32#

Although the ESP32 chip doesn't have an RGB LCD interface or a parallel port to drive a display, it has fast SPI ports.

ILI9341, ST7789, and SSD1306 are three display controllers that actually have SPI interface and you'll find many display modules equipped with them.

What Graphical Performance Can You Expect from ESP32?#

There are two main factors that determine graphical performance:

1. Rendering time - the time to draw a frame (or a part of it).
2. Flushing time - the time to transfer the rendered image to the display.

The rendering time depends on the speed of the MCU. A GPU can speed it up but unfortunately, ESP32 doesn't have one. Anyway, a 200 MHz core speed should be fine to render nice GUIs fast enough!

The flushing time depends on the system's architecture and the peripheries of the MCU. In the case of ESP32, you need to use SPI to send the rendered frame to the display controller.

Some Calculations#

By default the maximum SPI clock speed of ESP32 is 40 MHz. What does this mean? On a 320x240 display with 16-bit color depth you need to transfer 320 x 240 x 16 = 1,228,000 bits. At 40 MHz, this means 1,228,000 / 40,000,000 = 30 ms.

So to transfer a full frame requires 30 ms.

If you have e.g. 40 ms rendering time, the whole process takes 70 ms which means only 14 FPS.

How to Speed Up ESP32 for GUI Applications?#

There are two options:

1. Speed up SPI
2. Make the flushing and rendering parallel

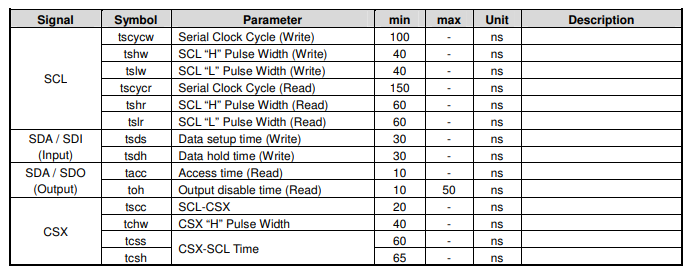

Let's discuss the SPI speed first. This table is from ILI9341's datasheet (page 230):

The first line says one clock period can be minimum 100 ns which means only 10 MHz. That would be extremely slow.

It turned out that ILI9341 actually works at higher clock rates too. They say 48 MHz is even possible, but it's still not a big gain compared to the 40 MHz in the previous calculation.

Anyway, in ESP32 you can increase the SPI speed to 80 MHz if you use dedicated pins.

According to the ESP32 SPI documentation:

When the GPIO matrix is used, signals faster than 40MHz cannot propagate and the setup time of MISO is more easily violated, since the input delay of MISO signal is increased. The maximum clock frequency with GPIO Matrix is 40MHz or less, whereas using all IOMUX pins allows 80MHz.

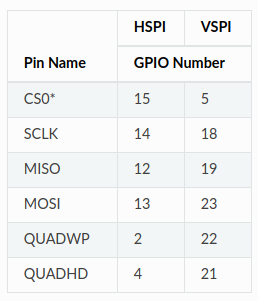

So just choose the following SPI pins to have an 80 MHz clock speed:

To drive a display, only MOSI and SCLK are required from the table.

So let's use the faster pins. The maximum clock rate is still 40 MHz because of ILI9341, but hopefully it will give better signals.

To make the rendering and flushing parallel you should use SPI with DMA. The DMA makes it possible to send the rendered image via SPI in the background and let the CPU do other things. ESP32 supports using DMA with SPI so it's just a question of the driver and some LVGL configuration. (Enable LV_VDB_DOUBLE in lv_conf.h)

Build and Flash an Official Example#

Install ESP32 Toolchain#

To get started you need to install the ESP32 development toolchain. Refer to this Guide and follow the steps.

Get ESP IoT Solution#

ESP IoT Solution is a huge collection of:

• drivers
• libraries
• and examples

Clone it somewhere (preferably in the esp folder where the toolchain was installed):

1. cd ~/esp/
2. git clone https://github.com/espressif/esp-iot-solution --recurse-submodules
3. export IOT_SOLUTION_PATH=~/esp/esp-iot-solution

Configure an Example#

Choose an example and configure it:

1. cd esp-iot-solution/examples/hmi/lvgl_example
2. make defconfig
3. make menuconfig

In the menuconfig go to IoT Solution Settings > IoT Component Management > HMI Components > LVGL Settings

In Config Driver:

• Choose your screen driver. In my case it was ILI9341

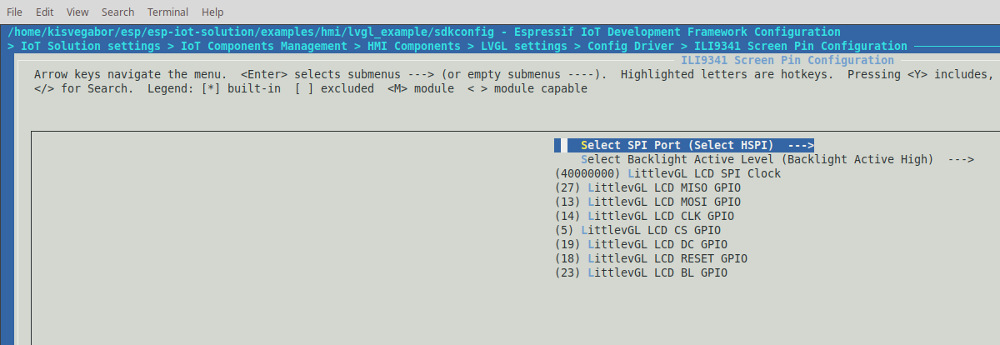

• Set the Screen pins as shown in the image below
• Set the LCD SPI clock to 40,000,000. It was the maximum value so the previously calculated 80 MHz can't be tried here.

If you enter into Touch Screen pin configuration you'll see only CS and IRQ pin settings. This means that it uses the same SPI as the Screen driver and the MOSI, MISO and CLK pins are shared. However, my screen has dedicated SPI pins for the touchpad and the screen and I didn't have "Y" cables. So I disabled touchpad for now in "LittlevGL Touchscreen Enable".

In the main menu of menuconfig in Serial flasher config, be sure the correct Serial port is selected. (ESP32 needs to be connected to your PC to see which Serial port is used.)

After that, save the settings and exit menuconfig.

Build and Flash#

To build and flash, type into the Terminal:

1. make to build the project. Or make -j8 to build on 8 threads.
2. make flash to program the ESP32

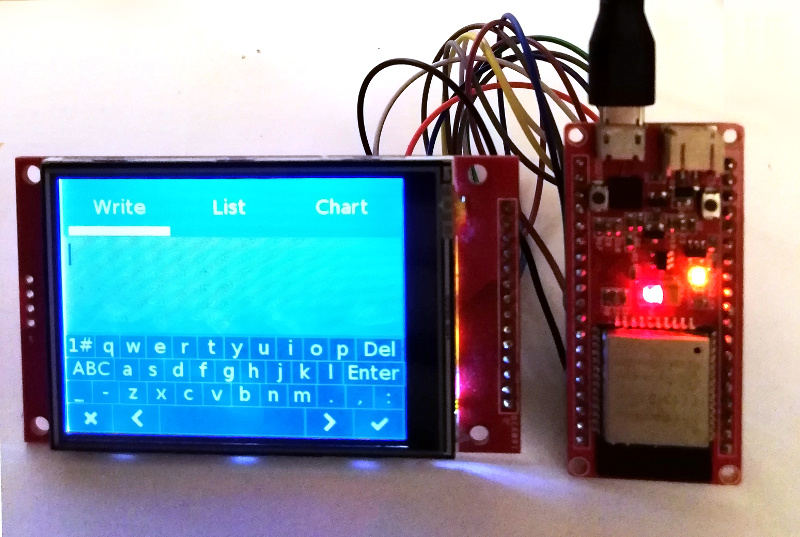

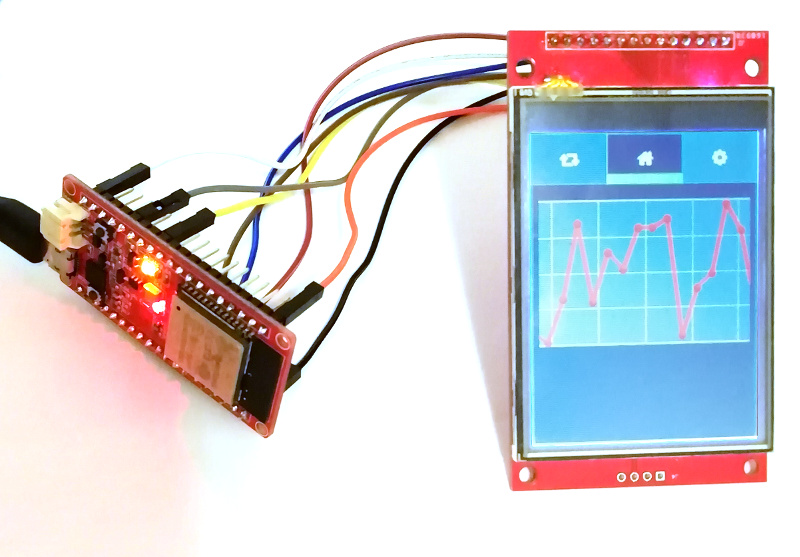

And the result is:

LVGL with ESP-IDF Directly#

If you want a more simple project with more freedom, you should use ESP-IDF which is the core ESP SDK.

There is an LVGL project you can use with ESP-IDF: https://github.com/littlevgl/esp32_ili9431

This project comes with an ILI9341 display driver and an XPT2046 touchpad driver. The display driver uses DMA and makes rendering and flushing parallel which results in a decent frame rate. You can customize these drivers according to your needs.

1. Get this project: git clone https://github.com/littlevgl/esp32_ili9431.git --recurse-submodules

2. Add LVGL to the build. Copy lvgl_component.mk and lv_example_component.mk as component.mk to the lvgl and lv_examples directories respectively.

3. Connect the touch pad (optional):

   • MOSI: 32
   • MISO: 25
   • SCLK: 26
   • CS: 33
   • IRQ: 25

4. make

5. make flash

What FPS Can Be Achieved?#

With the GUI in the above image - by making rendering and flushing parallel - I achieved about 30 FPS!

Summary#

ESP-IoT-Solution is a great and easy-to-use framework. As you can see, it takes only a few minutes to get started.

However, you can use ESP-IDF as well to try LVGL. This way you'll have more control over your project.

If you have a product with ESP32 and LVGL, you can share it on the LVGL website!
