This is a high-cost-performance graphic evaluation kit brought to you by RT-Thread in collaboration with Renesas and LVGL. Say goodbye to traditional HMI + main control board hardware and hello to the full capabilities of HMI + IoT + control with just one set of hardware. With Renesas' high-performance RA6M3 chip and RT-Thread's software ecosystem at its core, the HMI Board packs a punch with its strong hardware performance and rich software ecosystem. This makes it easier than ever for developers to create cutting-edge GUI smart hardware products.

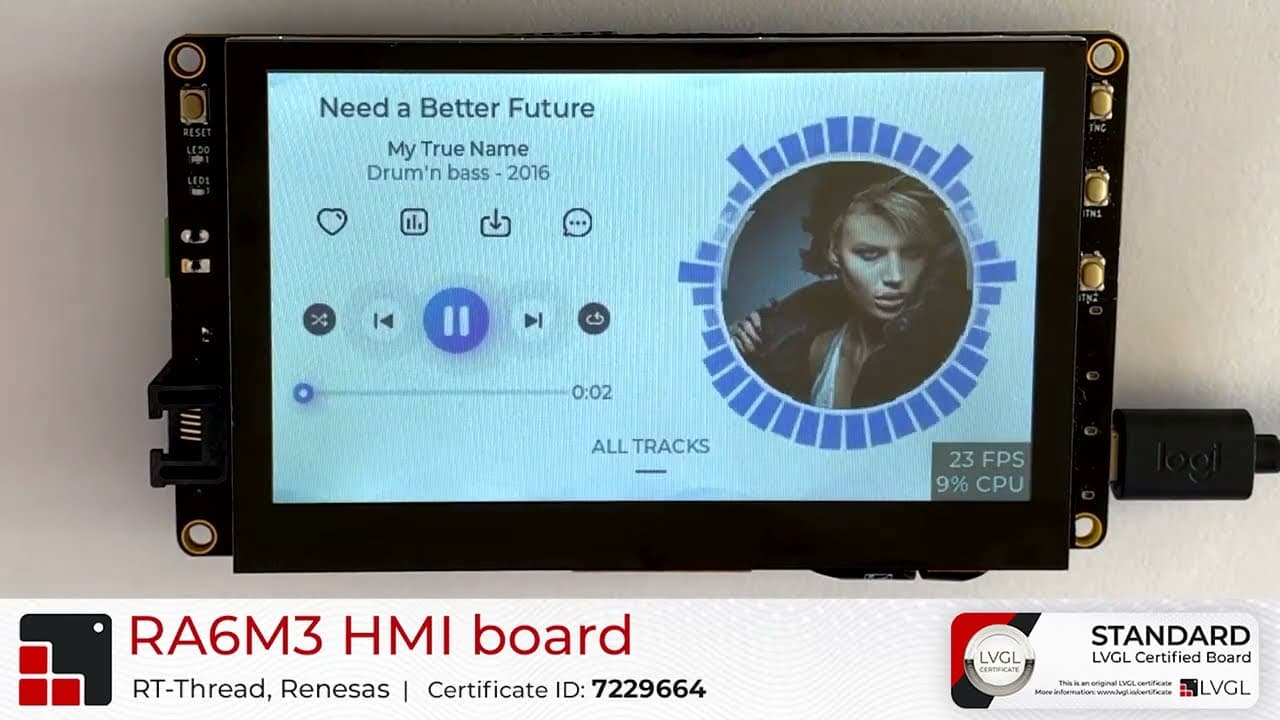

Renesas RA6M3 HMI Board LVGL Demo
The RA6M3 HMI board earned Standard LVGL board certification which means the users can be sure that it's easy to use that board with LVGL and they can expect decent performance and quality.
Buy Now#
You can order your RA6M3 HMI board in RT-Thread's AliExpress store.
Specification#
Display Details#
- Resolution 480x272
- Display size 4.3"
- Interface RGB
- Color depth 16-bit RGB565
- Technology IPS
- DPI 128 px/inch
- Touch pad Capacitive
Connectivity#
- Ethernet
- Audio
- RW007 (SPI high-speed WiFi)
Power#
- Power supply 5V (USB-C)
Performance#
You can expect moderate performance from the 120MHz MCU on a 480x272 display size. The RA6M3 Renesas MCU is equipped with Dave2D GPU which helps to offload the MCU.
Frame Rate (FPS)#
The RA6M3 HMI board reached 24 FPS on the LVGL's certification benchmark. The animated stripes that cannot be GPU accelerated caused a drop to ~20 FPS, however for the more common parts (where the list was being scrolled) there was steady 33 FPS.
Memory#
The huge internal SRAM (640 KB) allows storing even two full frame buffers (255 KB each) or one frame buffer and a smaller draw buffer for LVGL.
The 2 MB internal flash should be enough for the application, LVGL, and some images and assets, however it might be tight for multiple wallpapers and large fonts with many characters.
Quality#
Display#

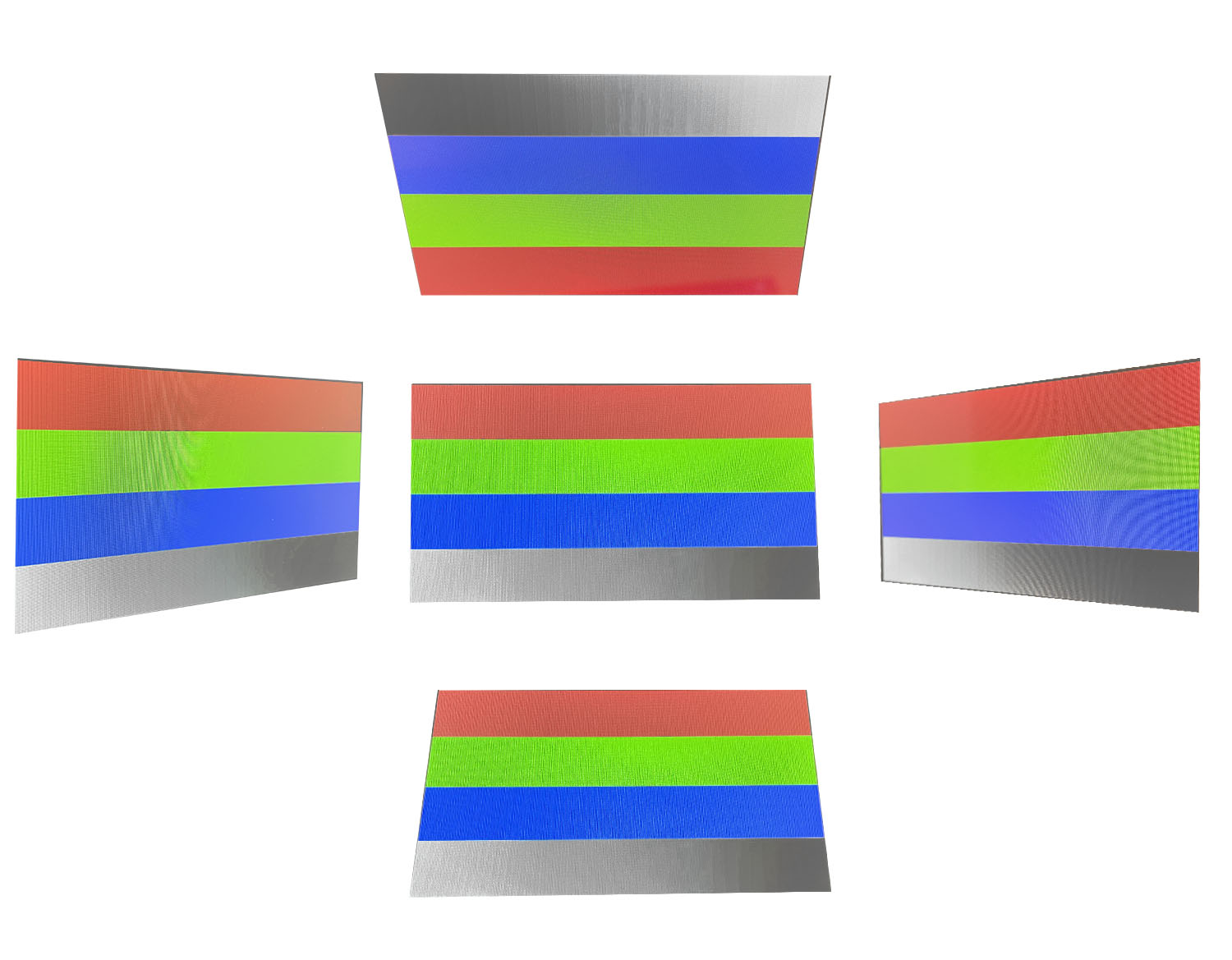

This board comes with an IPS display so it has an amazing viewing angle. We have found the brightness a little bit low but it should be suitable for most of the applications.
Touchpad#
The display is equipped with a capacitive touchpad. Therefore it recognizes touches with a good precision and provides a smartphone-like experience. The drawback is that the touchpad cannot be used with gloves or with a pen.
Robustness#
The display of the RA6M3 HMI board is attached to the board in a robust way. The board has 4 holes in each corner making it simple to mount to any end product.
Development#
As this board was developed by RT-Thread and Renesas Electronics, the environment for development is RT-Thread Studio. If you are not familiar with it yet, we highly recommend trying it out. It's a modern, elegant, Eclipse-based IDE where you can manage your project and its packages.
In this video you can learn how to get started with the RA6M3 HMI board in RT-Thread Studio. And here you can find a getting started guide for MDK Keil too.
The board is equipped with a DAP link so you need only a USB-C cable to flash and debug the board.
If you need any support you can contact RT-Thread directly via contact@rt-thread.org
Conclusion#
The RA6M3 HMI board is a compact board with a decent display and a lot of pins for extension. Its performance should be enough to handle UI with average complexity and visual effects. With RT-Thread Studio you will have access to many packages hosted in RT-Thread's Software Package manager.
